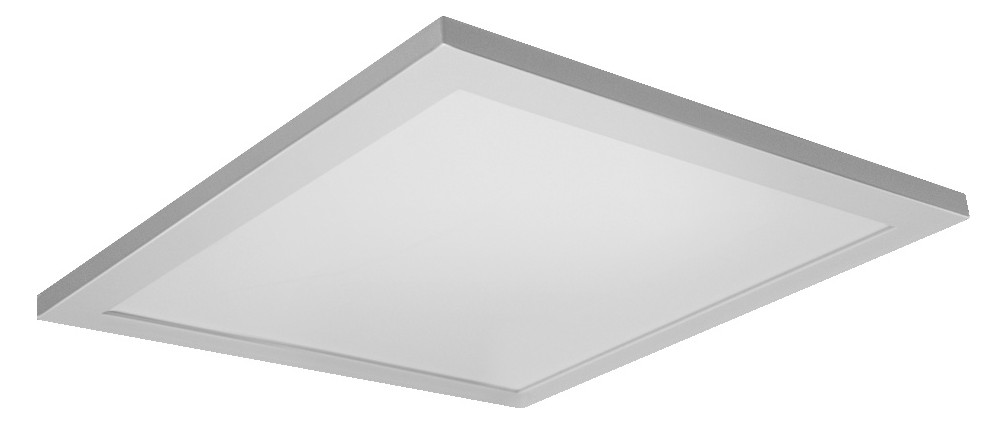

Panel lights with WiFi technology

SKU: 02-4058075525313
Datasheet: Download PDF
For more information, please refer to the data sheet!
Panel lights with WiFi technology. Product features: Controllable via LEDVANCE SMART+ WiFi app (with at least Android™️ 4.4 or iOS 10.0). Control via Google Assistant or Amazon Alexa possible. Dimmable. Colour temperature adjustable via Tunable White: 3,000... 6,500 K. Network protocol: WiFi. Product advantages: Easy and quick installation. Areas of application: Interior applications. Kitchen, living room, children's room or study. Technical equipment: Carrying bracket included. Including mounting screws and dowels. Control via app or voice control requires compatible smart home system. A smartphone or tablet is required for control via LEDVANCE SMART + WiFi app.
Weight
1,12 kg
Suitable for wall mounting

Yes

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

No

Suitable for surface mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Light source

LED not replaceable

With illuminant

Yes

Suitable for number of light sources

0

Material of the housing

Aluminum

Housing color

white

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

110 mA

Operating device

EVG

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Light emission

direct

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

25.000 h

Max. Number of lights Circuit breaker C16

24

Protection class (IP)

IP20

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Max. System performance

20 W

Luminaire luminous efficacy

75 lm/W

Rated luminous flux according to IEC 62722-2-1

1.500 lm

Color temperature

3.000 – 6.500 K

Color rendering index CRI

80-89

Power factor

0,9

Constant luminous flux control

No

Width

300 mm

Height/depth

56 mm

Length

300 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Adjustable color temperature

stepless

Adjustable luminous flux

stepless

Adjustable beam angle

No

Operation via Bluetooth

No

Compatible with Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

Yes

Compatible with Amazon Alexa

Yes

IFTTT support available

Yes

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
