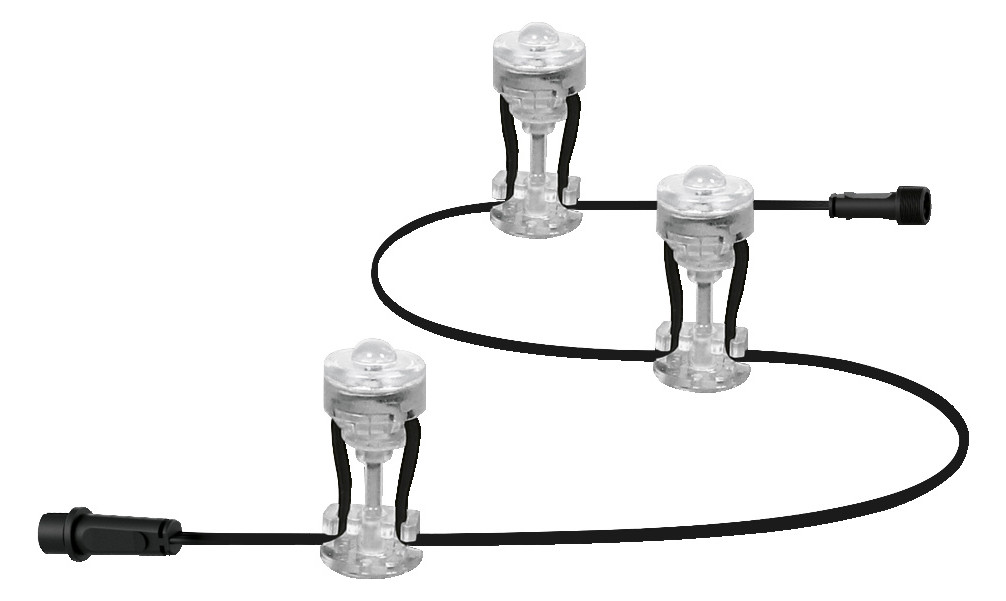

Decorative Dots for Outdoor Applications

SKU: 02-4058075478510
Datasheet: Download PDF
For more information, please refer to the data sheet!
Decorative dots for outdoor applications. Product features: Protection class (dots): IP65. Degree of protection (power supply): IP44. Expansion to a maximum of 18 dots. Color temperature: 3,000 K (Warm White). Product advantages: Easy and quick installation. Areas of application: Gardens, balconies and other outdoor areas. Technical equipment: Power supply only included in the basic set. Full mounting and connection accessories included.
Weight
0,08 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

0,08 kg

Product group

Path light (EC000301)

Replaceable operating device

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

With base plate

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

EVG

Light distributor

Without

Rated service life L70/B50 at 25 °C

25.000 h

Protection class (IP)

IP65

Protection class

III

Max. System performance

2,1 W

Light emission

direct

Rated luminous flux according to IEC 62722-2-1

160 lm

Luminaire luminous efficacy

52 lm/W

Color temperature

3.000 K

Color rendering index CRI

80-89

Width

23 mm

Height/depth

96 mm

Diameter

23 mm

Type of wiring

Conclusion

Number of poles

2

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus Kunststoffen (94054231)

REACH Indicator

No

Datenblatt
With footplate

No

With light sensor

No

With motion detector

No

Type of luminaire

Ground spike

Cover material

Plastic opal

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Light color

white

Power factor

0,5

Length

23 mm

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
