Wall and bollard luminaires in stainless steel look with indirect light
31. October 2024
ledvance/asset-10432545.jpg

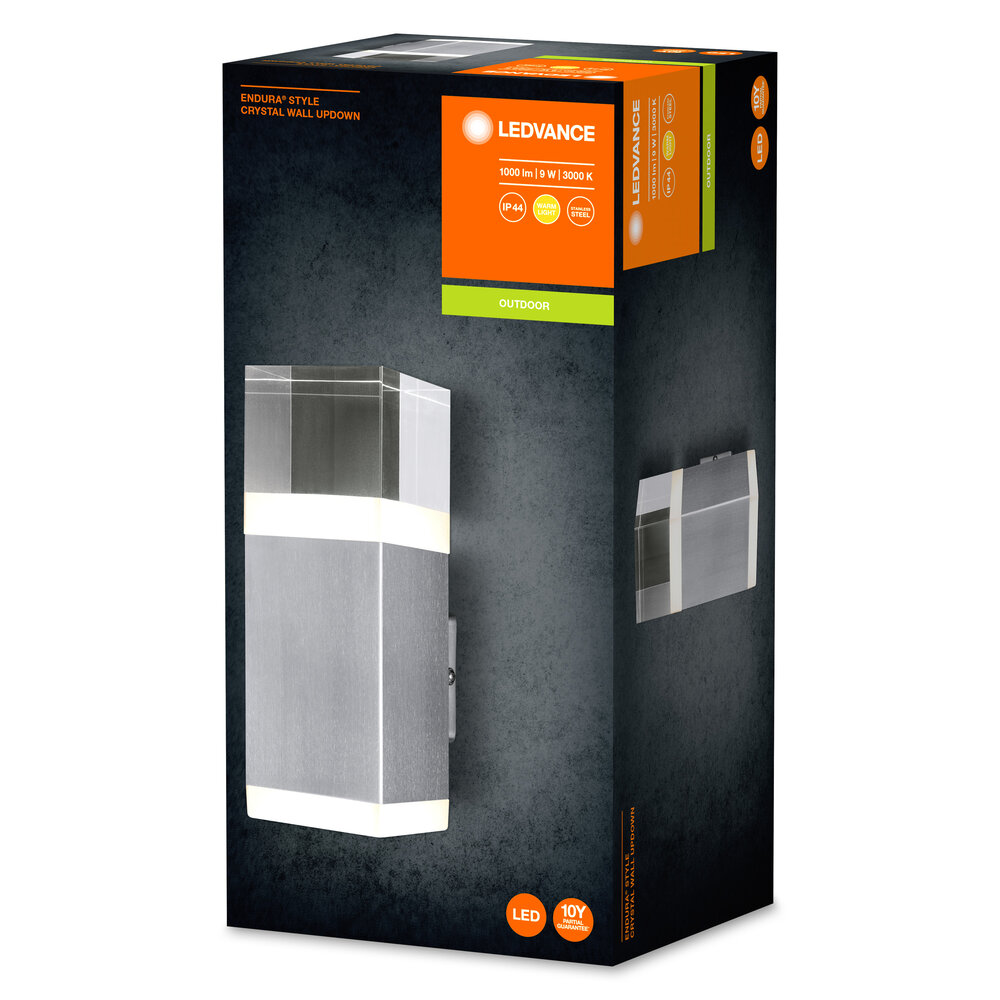

Wall and bollard luminaires in stainless steel look with indirect light

SKU: 02-4058075474130
Datasheet: Download PDF
For more information, please refer to the data sheet!
Wall and bollard luminaires in stainless steel look with indirect light. Product features: Bright and functional outdoor LED lights. Available with and without motion sensor. Stainless steel housing. Degree of protection: IP44. Product advantages: Easy and quick installation. Energy-efficient thanks to LED technology. Areas of application: Illumination of facades. Entrance lighting. Terraces, balconies. Technical equipment: Full mounting and connection accessories included.
Weight
1,1 kg
Minimum order quantity

6 pieces

Order step

6 pieces

Weight

1,1 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

Stainless steel

Max. System performance

9 W

Color temperature

3.000 K

Protection class (IP)

IP44

Without dimming function

Yes

Width

80 mm

Height/depth

215 mm

Length

105 mm

Design of the grid

other

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

EVG

Light emission

direct

Rated service life L70/B50 at 25 °C

25.000 h

Color rendering index CRI

80-89

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

89 lm/W

Rated luminous flux according to IEC 62722-2-1

800 lm

Type of wiring

Conclusion

Number of poles

3

Connection type

Plug-in terminal

Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Excluded

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt
Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Material of the housing

Steel

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Power factor

0,5

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
