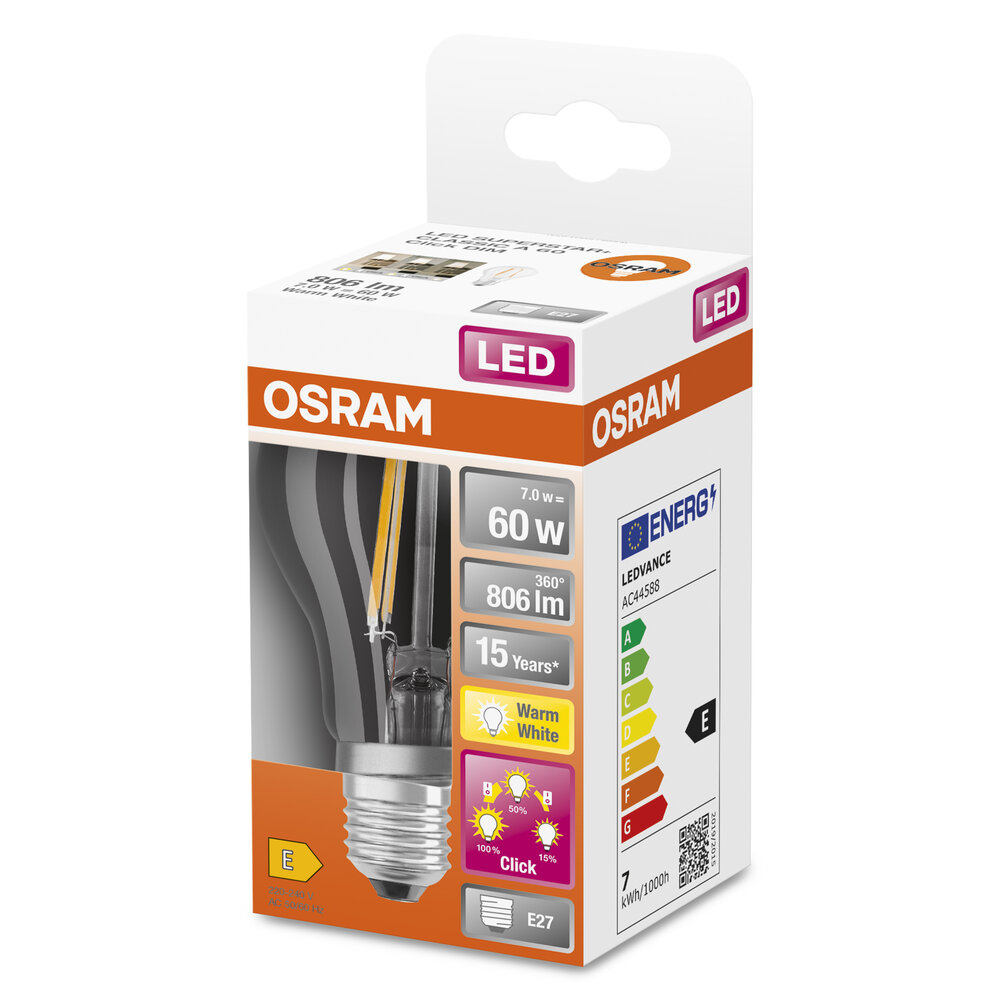

LED lamps with three-stage dimming

SKU: 02-4058075436787
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED lamps with three-stage dimming. Product features: Dimming in three stages: 100%, 45% and 15%. Controllable via standard wall switches. Good light quality; Color rendering index Ra: ≥ 80. Product advantages: Simple 3-step dimming by repeatedly pressing the light switch. Easy and cost-effective application, no dimmer required. Low energy consumption. Easy lamp replacement thanks to compact design. Instant 100% light, no warm-up time. Makes rooms multi-functional with adjustable lighting atmospheres. Areas of application: Wherever dimming was not originally planned. Living. Gastronomy. Outdoor use only in suitable outdoor luminaires.
Weight
0,032 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

0,032 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

45 mA

Power factor

0,5

Lamp wattage

7 W

Voltage type

AC

Luminous flux

806 lm

Rated luminous flux according to IEC 62612

806 lm

Lamp luminous efficacy

115 lm/W

Color rendering index CRI

80-89

Lamp shape

Pear shape

Filament lamp

Yes

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

E27

Color temperature

2.700 K

Beam angle

320 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

60 mm

Length

105 mm

Protection class (IP)

IP20

Lamp designation

A-Type

Energy efficiency class

E

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

7 kWh

Average rated service life

15.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG1

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

No

Datenblatt
Dimmable

No

With remote control

No

Suitable for ECG

No

Suitable for magnetic ballast

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

E

Distortion factor (THD)

110

With motion detector

No

With twilight switch

No
