  • Tunable White LED strips with 2000 lm/m for professional applications with very good colour rendering and service life
High-performance IP66 protected RGBW LED strips with 1000 lm/m for demanding applications
31. October 2024
High-performance IP66 protected RGBW LED strips with 1000 lm/m for demanding applications
31. October 2024
ledvance/asset-8912065.jpg

Tunable White LED strips with 2000 lm/m for professional applications with very good colour rendering and service life

SKU: 02-4058075436084
Datasheet: Download PDF
For more information, please refer to the data sheet!
Tunable White LED strips with 2000 lm/m for professional applications with very good colour rendering and service life. Product features: Colour temperature adjustable via Tunable White: 2,700... 6,500 K. Smallest divisible unit: 100 mm. Lifetime (L70/B50): up to 50,000 h at Tcmax. ≤ 85°C. Dimmable by pulse width modulation (PWM). Compatible with LEDVANCE Tunable White RF radio control components. Very good colour rendering index Ra: > 90. Product advantages: Great design freedom thanks to long, flexible TW LED light strips. Easy installation, tool-free connection. Easy installation thanks to self-adhesive tape. Maximum flexibility thanks to a large selection of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: cove lighting. Hotels. Bureaus. General lighting.
Weight
0,14 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,14 kg

Product group

Light tube/tape (EC002706)

Constant luminous flux control

Yes

Adjustable luminous flux

stepless

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Execution

Ribbon

Mounting type

Structure

Light source

LED not replaceable

Number of light sources per meter

120

Number of light sources per foot

36

Lamp wattage per meter

21,6 W

Luminous flux per meter

1.700 lm

Voltage type

DC

Lamp voltage

24 V

Beam angle

120 °

Rated service life L70/B50 at 25 °C

50.000 h

Protection class (IP)

IP00

Protection class (NEMA)

1

Max. System performance

108 W

Color temperature

2.700 – 6.500 K

Width

10 mm

Height/depth

1,2 mm

Length

5.000 mm

Smallest bending radius

30 mm

Length of the individual sections

100 mm

With end piece

No

With connection set

No

With protective cover

No

Self-adhesive

Yes

Number of poles

3

Conductor cross-section

0,5 mm²

Connection type

Plug-in terminal

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode modules (LED modules) (85395100)

REACH Indicator

No

Datenblatt
4058075436084_tds_de.pdfasset-13097579-6.pdfasset-11464352.pdf
Luminaire luminous efficacy

79 lm/W

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Color rendering index CRI

90-100

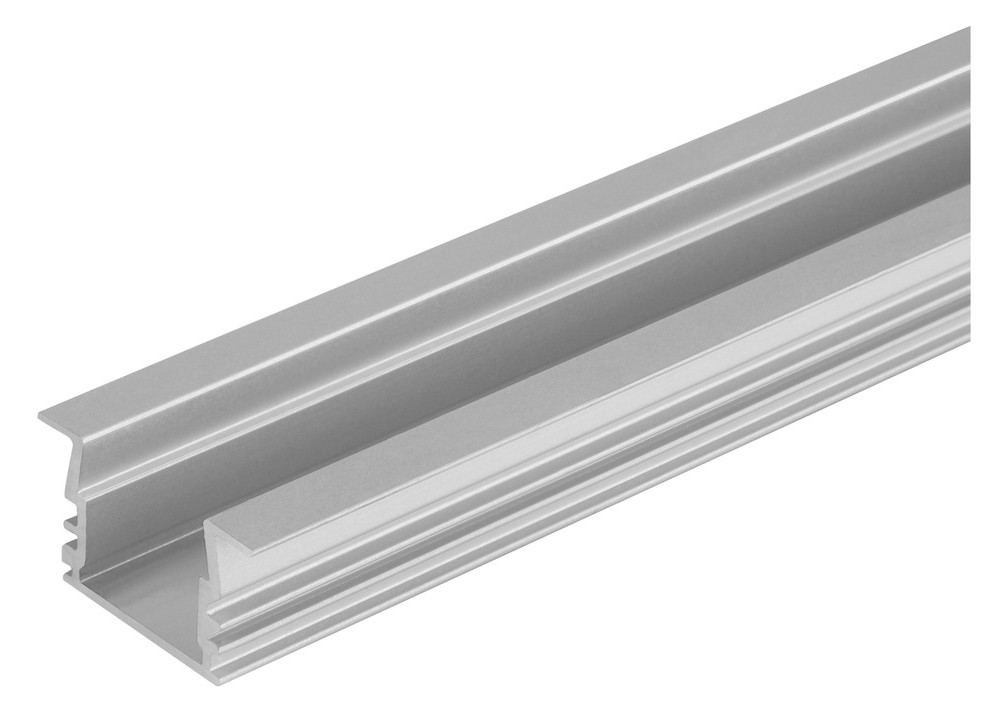

Matching accessories for this product
