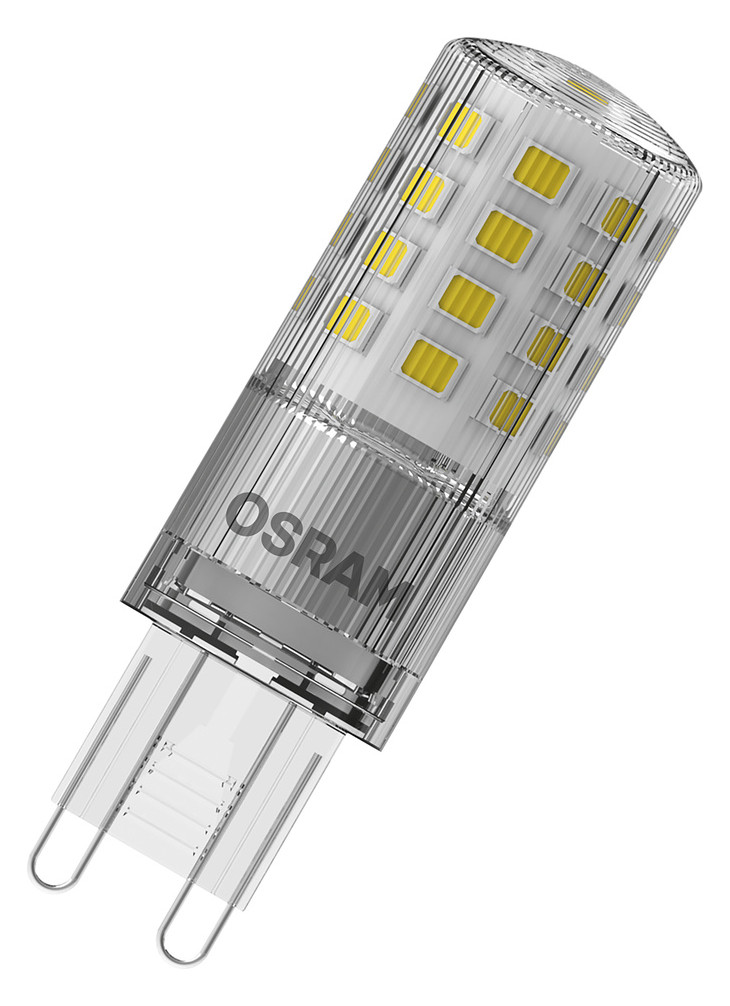

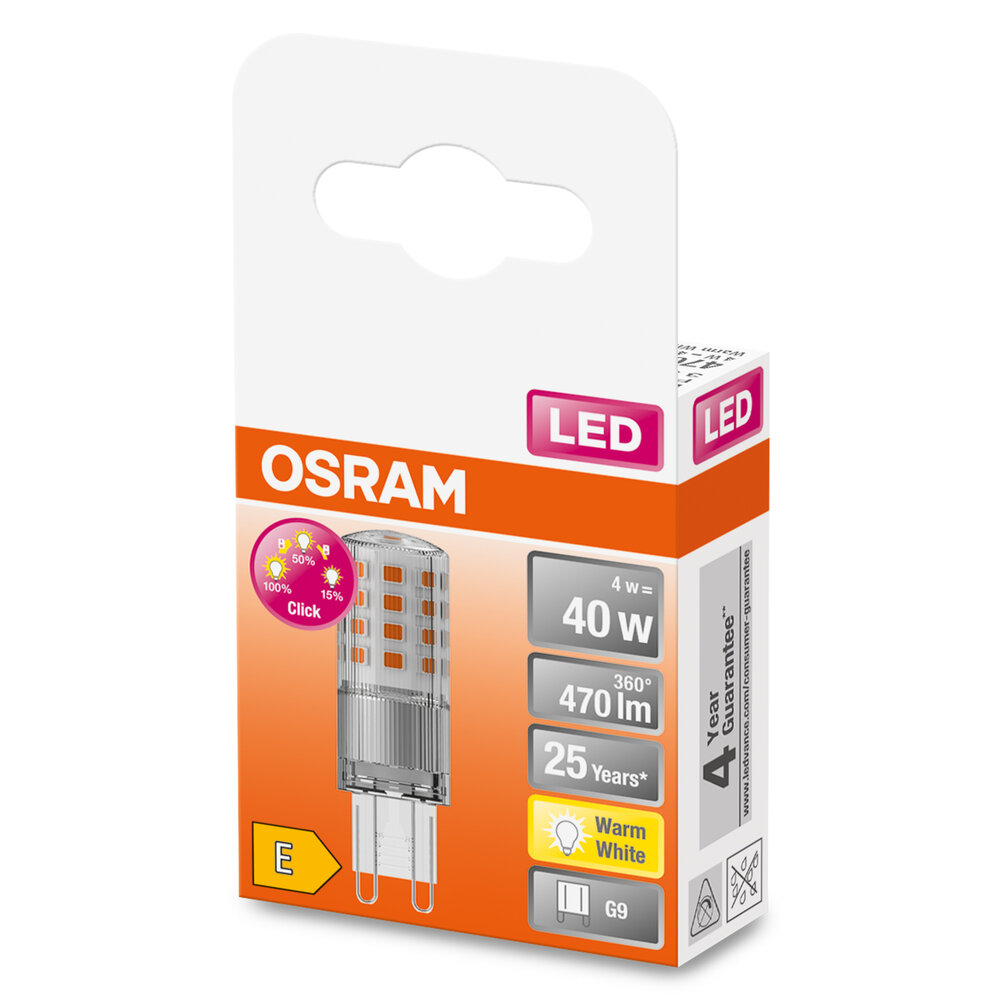

LED lamps with three-stage dimming

SKU: 02-4058075432277
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED lamps with three-stage dimming. Product features: Dimming in three stages: 100%, 45% and 15%. Controllable via standard wall switches. Good light quality; Colour rendering index Ra: ≥ 80. Product advantages: Simple 3-stage dimming by repeatedly pressing the light switch. Easy and cost-effective application, no dimmer required. Very long service life of up to 25,000 h. Four-year warranty. Areas of application: Wherever dimming was not originally planned. Living. Gastronomy. Outdoor use only in suitable outdoor luminaires.
Weight
0,012 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

0,012 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

34 mA

Lamp wattage

4 W

Voltage type

AC

Luminous flux

470 lm

Rated luminous flux according to IEC 62612

470 lm

Lamp luminous efficacy

117 lm/W

Color rendering index CRI

80-89

Filament lamp

No

Glass/cover version

clear

Light color according to EN 12464-1

warm white <3300 K

Base

G9

Color

multicolored

Color temperature

2.700 K

Beam angle

320 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

18 mm

Length

59 mm

Protection class (IP)

IP20

Lamp designation

other

Energy efficiency class

E

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

4 kWh

Average rated service life

25.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG1

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

No

Datenblatt
Dimmable

No

With remote control

No

Power factor

0,4

Suitable for ECG

No

Suitable for magnetic ballast

No

Lamp shape

other

Housing color

gray

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

E

With motion detector

No

With twilight switch

No
