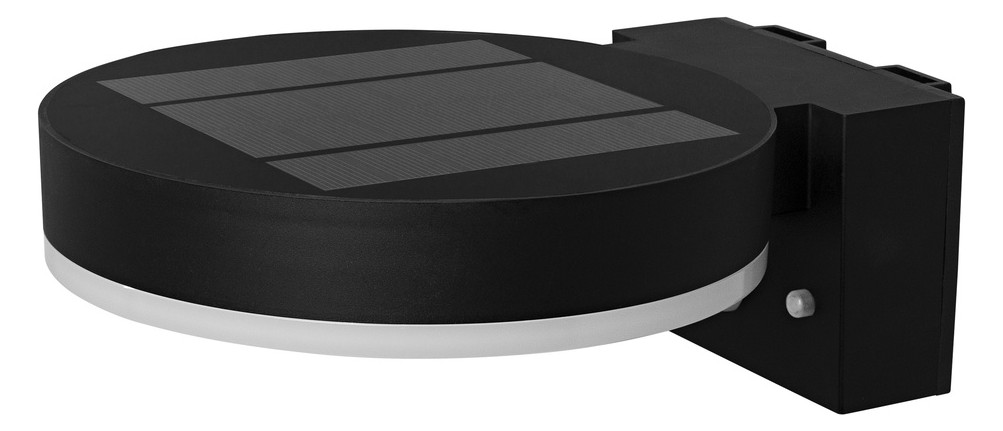

Solar powered lantern lights with motion and light sensors, a light ring

SKU: 02-4058075392762
Datasheet: Download PDF
For more information, please refer to the data sheet!
Solar powered lantern lights with motion and light sensors, a light ring. Product features: Solar powered LED outdoor lights. PIR motion detector and daylight sensor. 3 operating modes can be selected. Operating mode 1: Continuous light with 200 lumens (max. 2.5 hours on a full battery charge). Mode 2: Continuous light with 75 lumens (max. 8 hours on a full battery charge), switches to 300 lumens when moving (max. 100 switches when fully charged). Mode 3: Light off, switches to 400 lumens when moving (max. 100 circuits on a full battery charge). Battery charging by means of a solar cell. Battery technology: Lithium-ion. Stainless steel housing. Product advantages: Needs-based lighting and energy savings by means of motion and daylight sensors. Easy adjustment of daylight and motion detection at the touch of a button. Energy-efficient thanks to LED technology. Easy and quick installation. Areas of application: Outdoor application (IP44). Areas where electricity is not available. Technical equipment: Full mounting and connection accessories included.
Weight
0,4 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

0,4 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

black

Max. System performance

6 W

Color temperature

3.000 K

Protection class (IP)

IP44

Without dimming function

No

Width

160 mm

Height/depth

70 mm

Length

200 mm

Material of the housing

Plastic

Design of the grid

dull

Voltage type

DC

Nominal voltage

3 – 2 V

Rated current

1.700 mA

Operating device

EVG

Color consistency (McAdam ellipse)

SDCM6

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Color rendering index CRI

80-89

Impact resistance

IK03

Protection class

III

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

67 lm/W

Rated luminous flux according to IEC 62722-2-1

400 lm

Number of poles

2

Photobiological safety according to EN 62471

RG1

Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

With motion detector

Yes

With light sensor

Yes

RoHS applicable

Excluded

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, fotovoltaisch, mit LED-Lichtquelle, andere als Scheinwerfer, aus Kunststoffen (94054131)

REACH Indicator

Yes

Datenblatt
Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Cover material

Plastic opal

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
