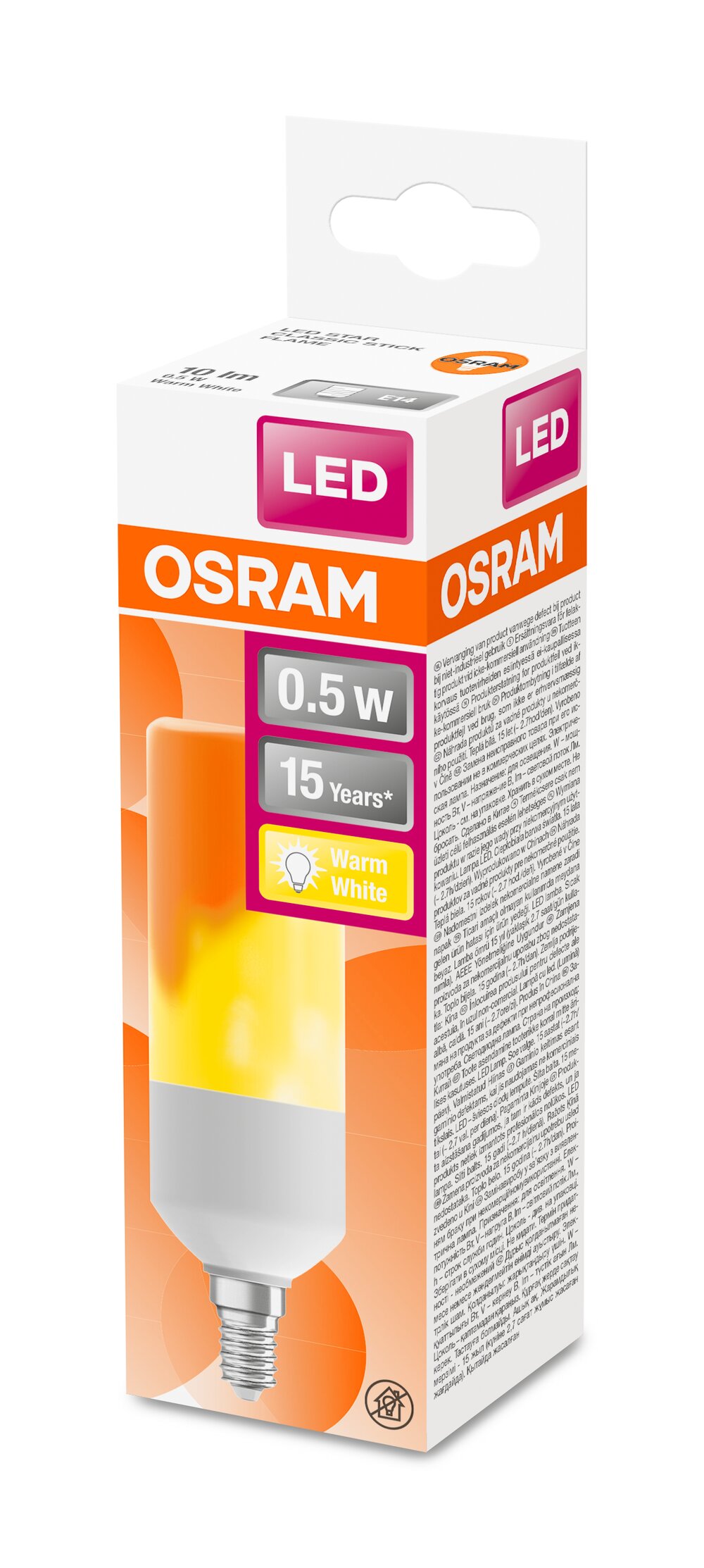

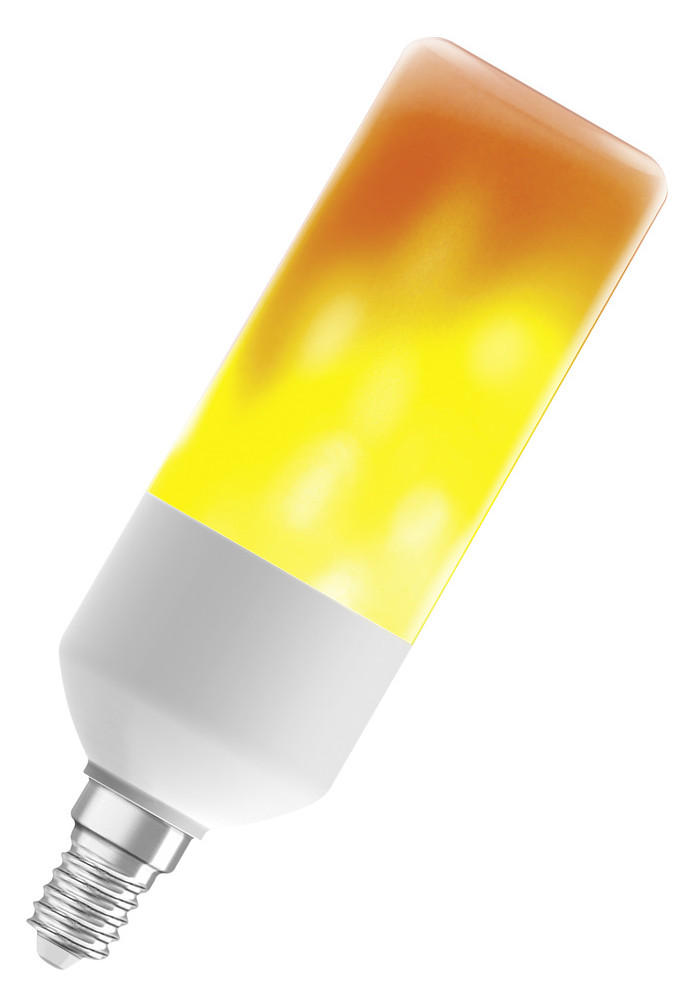

LED lamps, classic rod shape

SKU: 02-4058075389885
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED lamps, classic rod shape. Product features: LED alternative to conventional lamps. Good light quality; Color rendering index Ra: ≥ 80; constant color location. Mercury-free lamps. Product advantages: Low energy consumption. Shapely lamp design. Areas of application: Living rooms, especially when the lamp is visible. Wherever compact, efficient lamps are needed. With high demands on service life and switching resistance. Outdoor use only in suitable outdoor luminaires.
Weight
0,055 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

0,055 kg

Product group

LED lamp/multi-LED (EC001959)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Nominal voltage

220 – 240 V

Rated current

12 mA

Lamp wattage

0,5 W

Voltage type

AC

Luminous flux

10 lm

Rated luminous flux according to IEC 62612

10 lm

Lamp luminous efficacy

20 lm/W

Color rendering index CRI

40-59

Lamp shape

Tube, single-ended

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

warm white <3300 K

Base

E14

Color

white

Color temperature

1.500 K

Housing color

white

Beam angle

330 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

45 mm

Length

145 mm

Protection class (IP)

IP20

Energy Efficiency Index (EEI)

0,16

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

1 kWh

Average rated service life

15.000 h

Remote control possible

No

Photobiological safety according to EN 62471

RG1

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

No

Datenblatt
Dimmable

No

With remote control

No

Power factor

0,5

Suitable for ECG

No

Suitable for magnetic ballast

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

With motion detector

No

With twilight switch

No
