Headlights with wide-beam, asymmetrical light distribution for a wide range of applications

SKU: 02-4058075353534
Datasheet: Download PDF
For more information, please refer to the data sheet!

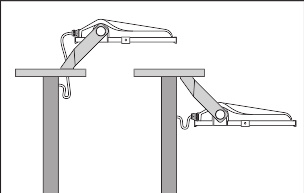

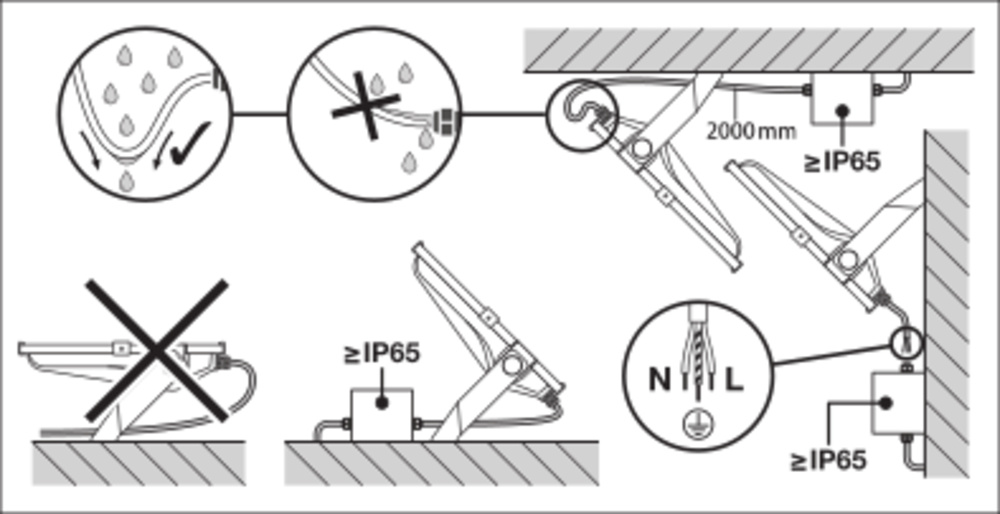

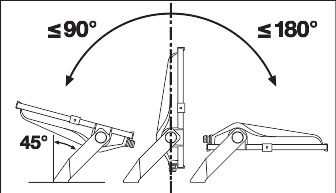

Headlights with wide-beam, asymmetrical light distribution for a wide range of applications. Product features: High luminous efficiency: up to 140 lm/W. Asymmetrical light distribution for a wide range of applications. Beveled (45°) mounting bracket with rotation range of up to 180°. Degree of protection: IP66. Impact resistance: IK08. Ambient temperature range during operation: -30...+50 °C. High surge protection of up to 10 kV (L/N-PE), 6 kV (L-N). Integrated climate membrane to prevent condensation from forming inside the luminaire. Connection via cable (2 m), wiring required. Product advantages: Energy savings of up to 90% compared to halogen lamps. Up to 45% energy savings compared to luminaires using conventional discharge lamps. Bright, robust and durable. Uniform luminance distribution and reduced glare. No light emission in the upper half-space (ULOR 0%) at 0° inclination. Keyhole for extra easy installation. 5-year warranty. Applications: Direct replacement for luminaires that use HID lamps. Outdoor use (IP66). Parking place. Public space. Industry. Sports facilities. Architectural lighting. D-mark according to EN 60598-2-24 for business premises at risk of fire, e.g. due to accumulation of dust.
Weight
4,5 kg
Weight

4,5 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

Yes

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Max. Number of lights Circuit breaker C16

4

IFTTT support available

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

Yes

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

pivotable

Light source

LED not replaceable

Suitable for number of light sources

0

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

black

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

LED rated current with constant current

735 mA

Operating device

EVG

Without dimming function

Yes

Reflector

Without

Light distributor

Focus lens

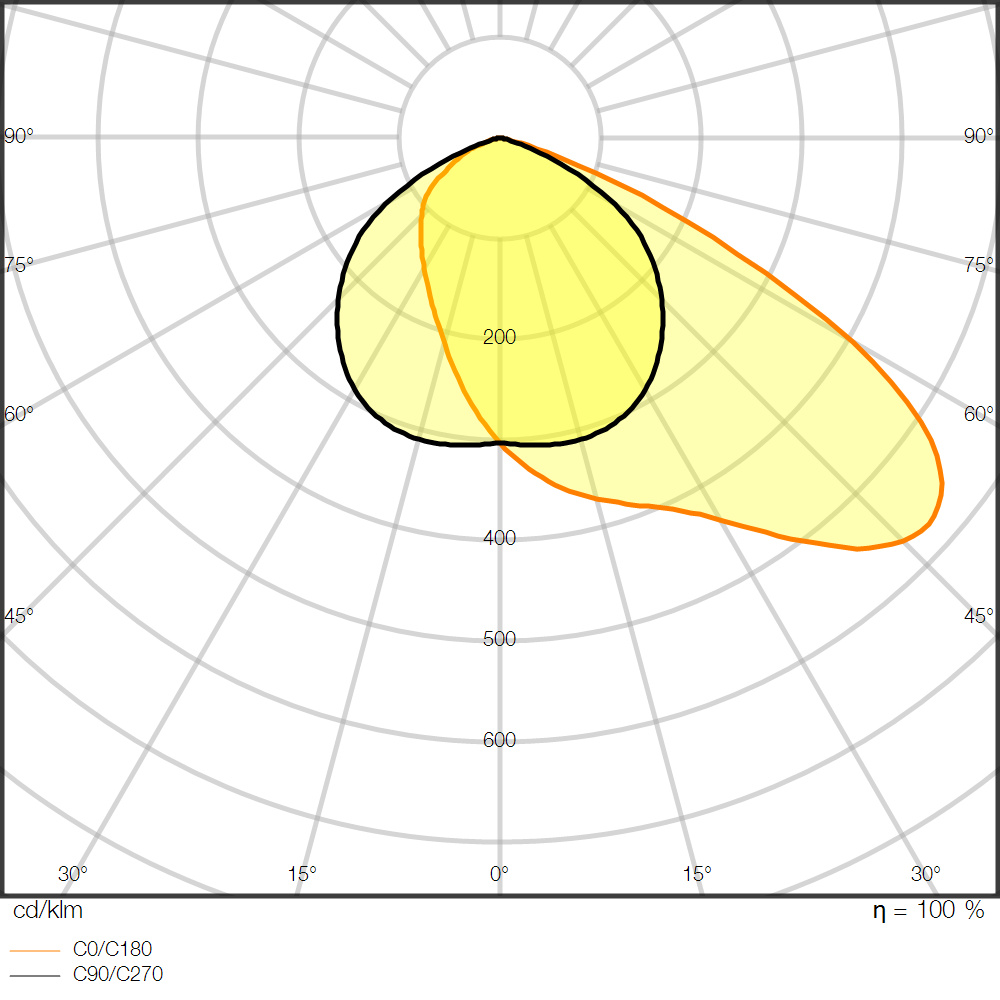

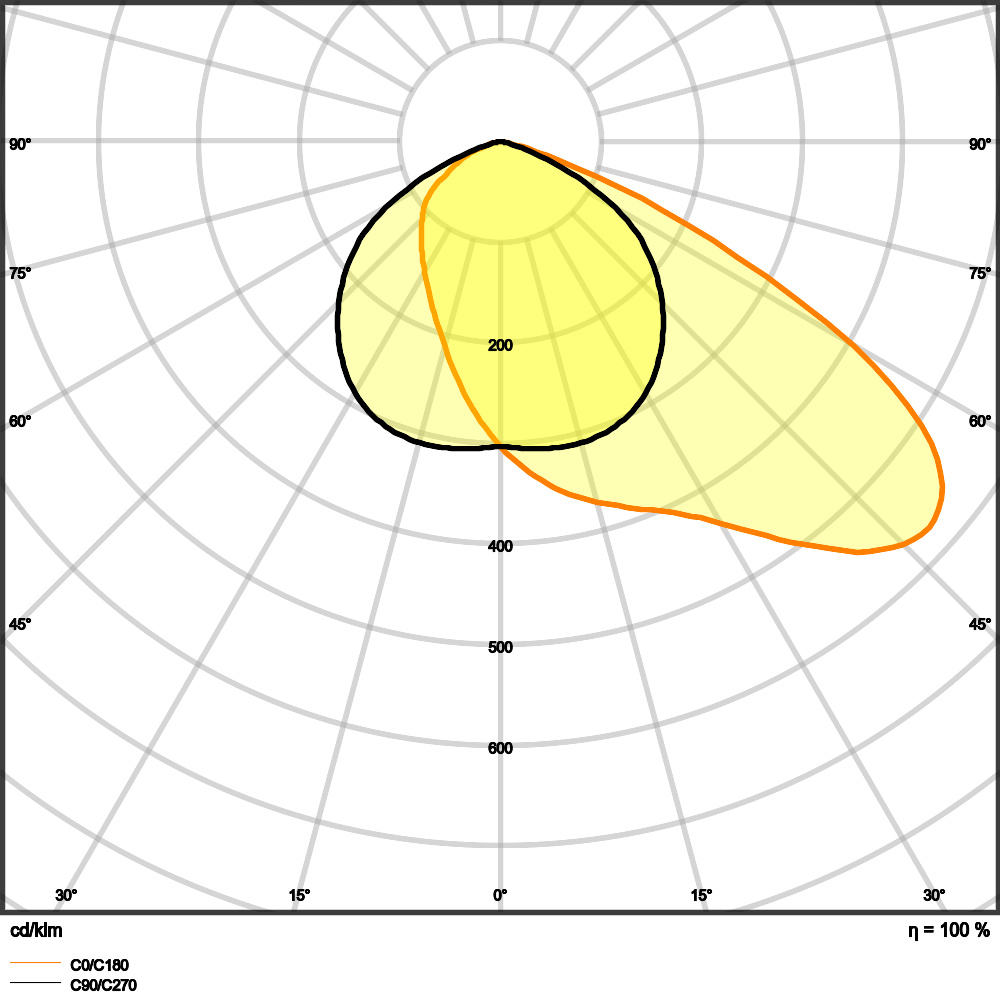

Light distribution

asymmetrical

Light emission

direct

Rated service life L70/B50 at 25 °C

100.000 h

Rated service life L80/B10 at 25 °C

70.000 h

Protection class (IP)

IP66

Impact resistance

IK08

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-30 – 50 °C

Max. System performance

150 W

Color temperature

3.000 K

Luminous flux

18.400 lm

Rated luminous flux according to IEC 62722-2-1

18.400 lm

Width

330 mm

Height/depth

77 mm

Length

451 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Luminaire luminous efficacy

125 lm/W

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM5

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Excluded

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)

REACH Indicator

Yes

Datenblatt
4058075353534_tds_de.pdfasset-8705239-60.jpgasset-8705241-60.jpgasset-8705243-54.jpgasset-8364965-22.pdfasset-13034127-1.jpgasset-13062202.jpgasset-13083671.jpgasset-13133889-28.pdfasset-8176866.jpg
Suitable for surface-mounted mounting

Yes

Suitable for recessed mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

No

With motion detector

No

With light sensor

No

Suitable for number of light sources

0

Dimming depending on the control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-30 – 50 °C

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Rated current

735 mA

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Light color

white

Color rendering index CRI

80-89

Power factor

0,9

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

Yes

Operation via Bluetooth

No
