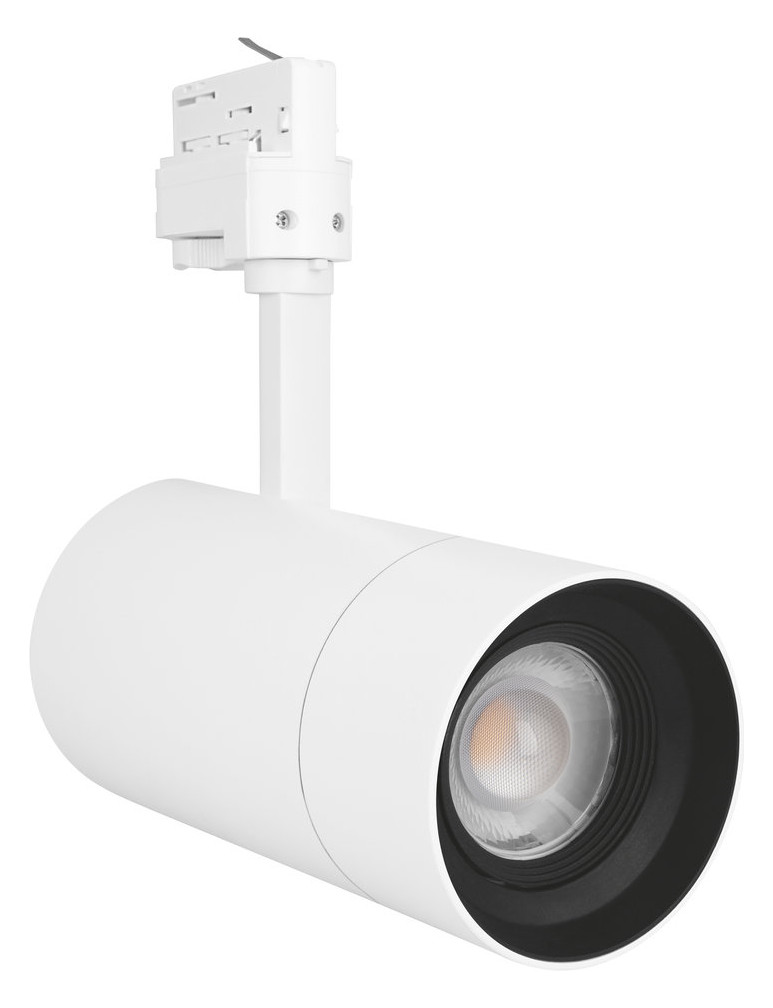

Dimmable 3-phase track spotlight with mechanical zoom lens

SKU: 02-4058075335769
Datasheet: Download PDF
For more information, please refer to the data sheet!

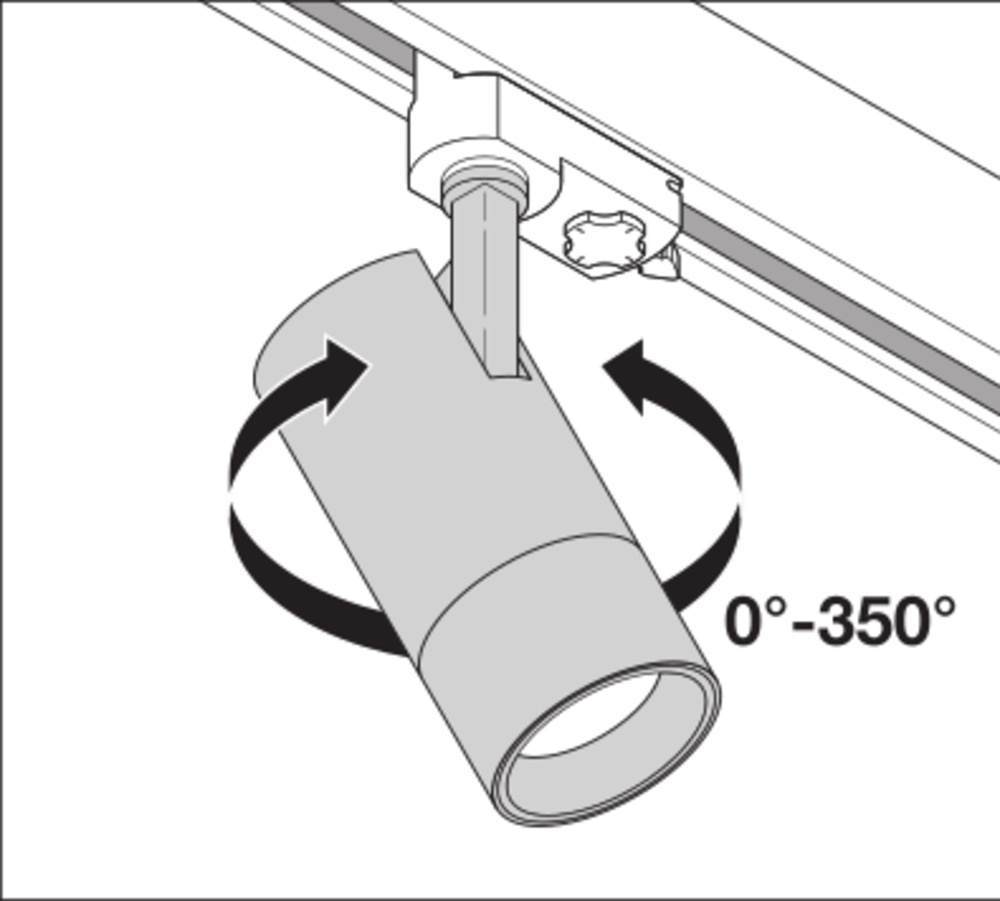

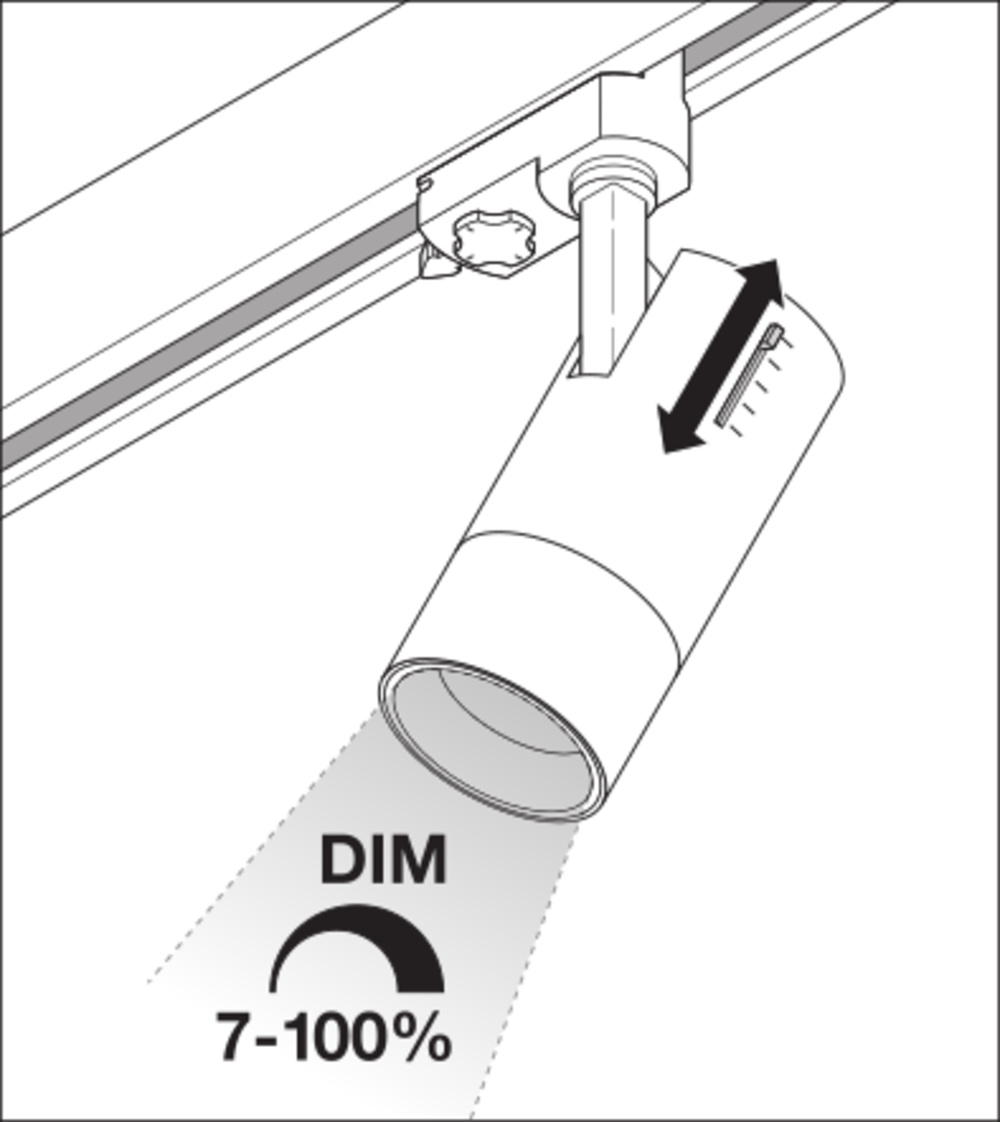

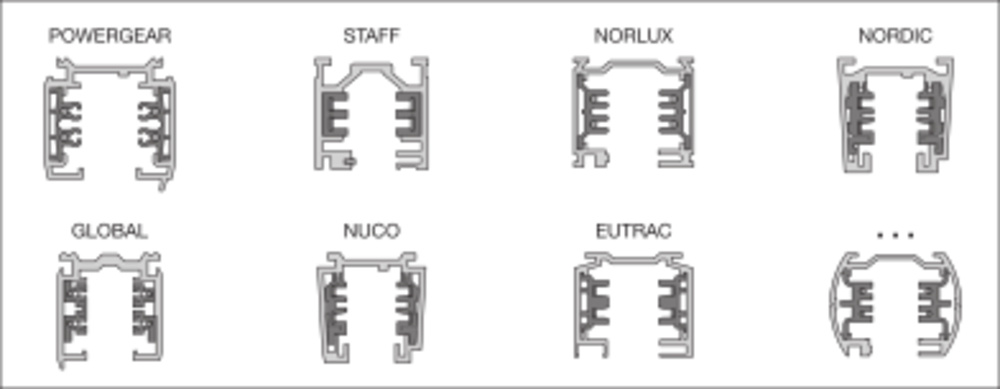

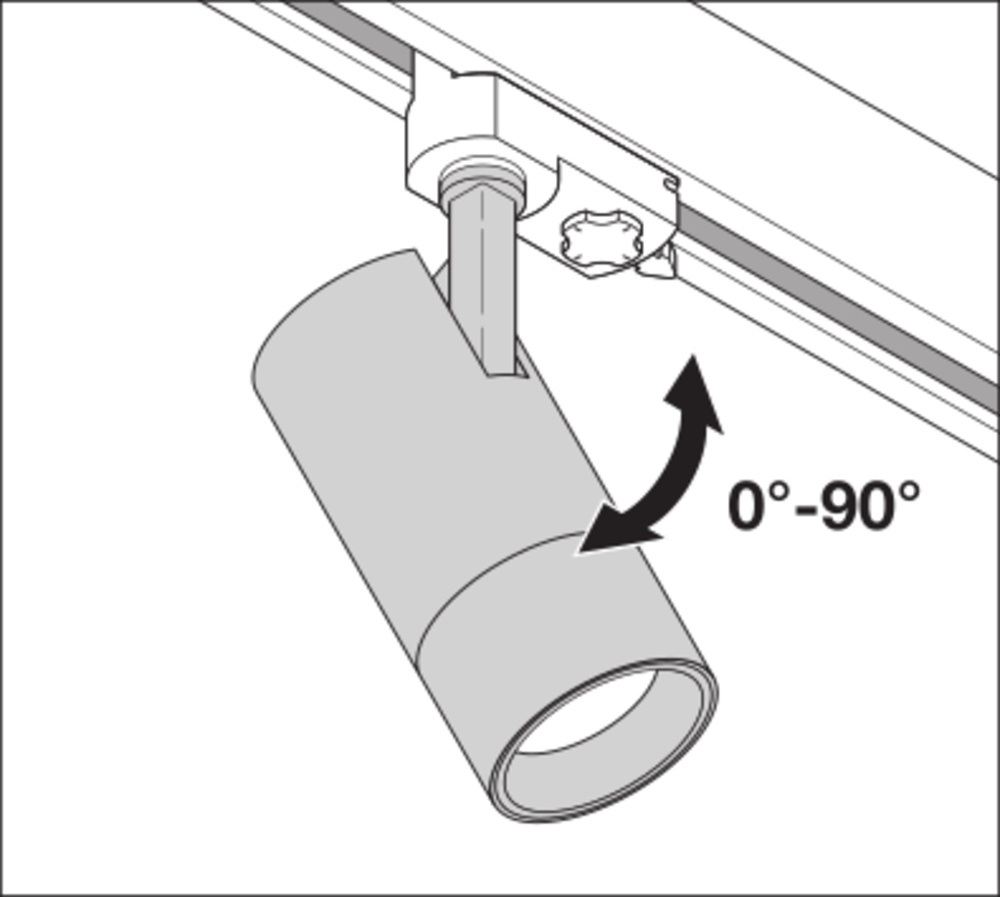

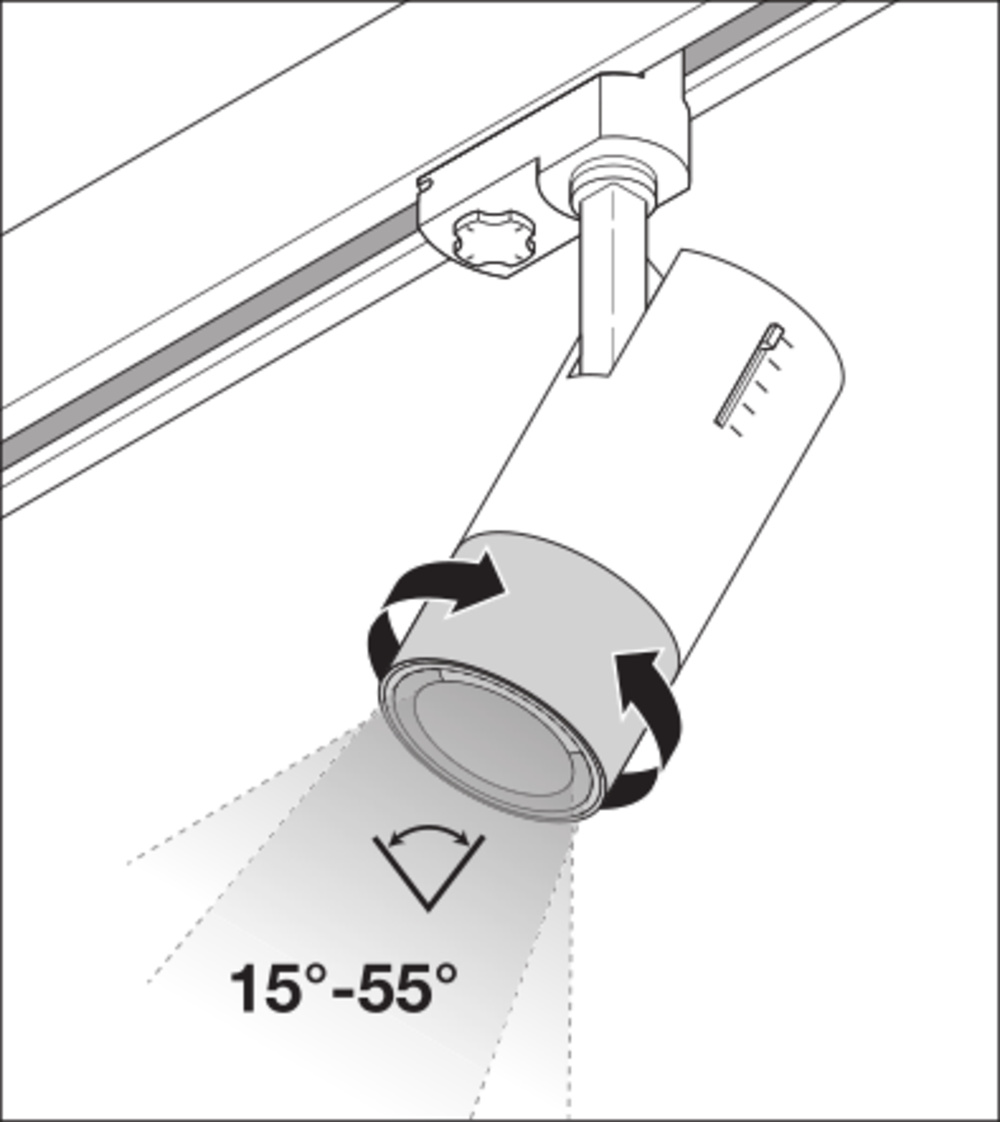

Dimmable 3-phase track spotlight with mechanical zoom lens. Product features: Mechanical zoom lens with a beam angle of 15° to 55°. Dimmable (7% - 100%) via sliding potentiometer directly on each luminaire. Excellent colour rendering index Ra: 97. Colour rendering index Ra9: > 90. Initial colour consistency: ≤ 4 SDCM (threshold value unit). Rotation angle: 350°, tilt angle: 90°. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminium. Available in matte white (similar RAL9016), matte black (similar RAL9004). Light output: up to 70 lm/W. Product advantages: Dimmable 3-phase track spotlight with mechanical zoom lens. Included 3-phase adapter compatible with common busbars (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC). No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year warranty. Applications: Direct replacement for luminaires that use HID lamps. Accent. Galleries, museums. Fashion stores, accessory stores. Shops, changing rooms, shop windows. Hotels, Restaurants, Shops.
Weight
1,025 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

1,025 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

Yes

Dimming DALI-2

No

Adjustable color temperature

No

Adjustable luminous flux

No

Max. Number of lights Circuit breaker C16

48

IFTTT support available

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

Rotatable and swiveling

Light source

LED not replaceable

Suitable for number of light sources

0

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Brushed surface

No

Voltage type

AC

Nominal voltage

100 – 240 V

LED rated current with constant current

120 mA

Operating device

LED control gear, current-controlled

Without dimming function

No

Reflector

high gloss

Light distributor

Focus lens

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

35.000 h

Protection class (IP)

IP20

Impact resistance

IK03

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Max. System performance

25 W

Color temperature

3.000 K

Color rendering index CRI

90-100

Luminous flux

1.500 lm

Rated luminous flux according to IEC 62722-2-1

1.500 lm

Height/depth

265 mm

Length

93 mm

Outer diameter

85 mm

Number of poles

2

Connection type

Busbar adapter

Luminaire luminous efficacy

60 lm/W

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM4

Suitable for surface mounting

Yes

Suitable for pendant suspension

Yes

With illuminant

Yes

With control gear

Yes

Dimming potentiometer (device-integrated)

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

No

Datenblatt
4058075335769_tds_de.pdfasset-8877454-3.jpgasset-8877452-3.jpgasset-8877446-3.jpgasset-8877448-3.jpgasset-8877450-3.jpgasset-7840005-3.pdfasset-6794284.jpgasset-6794410.jpgasset-13081100-3.pdfasset-13140503.pdfasset-7058177.jpg
Suitable for surface-mounted mounting

Yes

Suitable for recessed mounting

No

Suitable for ceiling mounting

No

With motion detector

No

With light sensor

No

Suitable for number of light sources

0

Dimming depending on the control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Cover material

Plastic opal

Rated current

120 mA

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Light color

white

Power factor

0,9

Width

85 mm

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Operation via Bluetooth

No
