Moisture-proof luminaires, classic shape

SKU: 02-4058075300903

Datasheet: Download PDF

For more information, please refer to the data sheet!

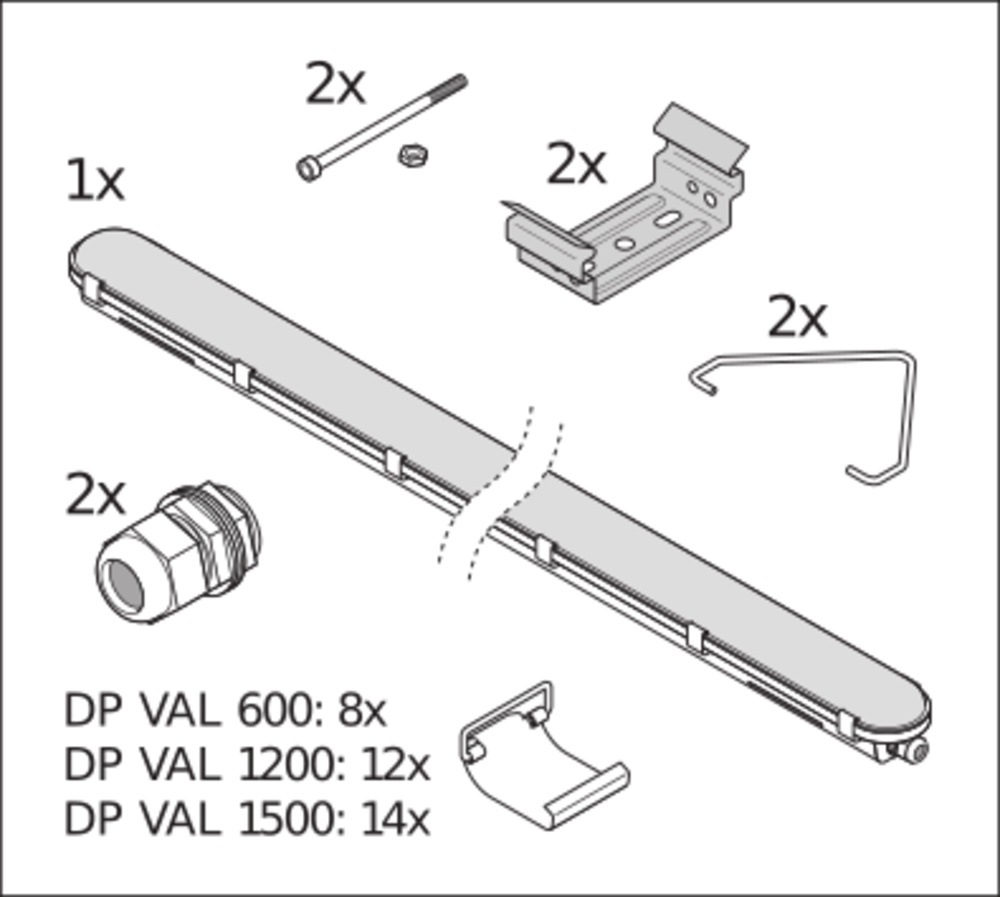

Moisture-proof luminaires, classic shape. Product features: High luminous efficiency: up to 120 lm/W. Degree of protection: IP65. Beam angle: 115°. through-wiring possible. Polycarbonate housing. Product advantages: Uniform light distribution. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Easy installation, tool-free connection. 3-year warranty. Areas of application: Industrial and warehouse areas. Parking lots and underpasses. Garages. Workshops, production lines. Technical equipment: Stainless steel brackets and security screws included. Mounting accessories included (suspension kit, anti-theft kit).

Weight

2 kg

Minimum order quantity

6 pieces

Order step

6 pieces

Weight

2 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Dimming DALI-2

Max. Number of lights Circuit breaker C16

Adjustable color temperature

Adjustable luminous flux

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Yes

Housing color

gray

Max. System performance

50 W

Color temperature

4.000 K

Protection class (IP)

IP65

Without dimming function

Yes

Width

77 mm

Height/depth

68 mm

Length

1.500 mm

Suitable for number of light sources

Version

other

Surface protection housing

untreated

Material of the housing

Plastic

Design of the grid

dull

Voltage type

Nominal voltage

220 – 240 V

Rated current

270 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Impact resistance

IK08

Protection class

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

120 lm/W

Rated luminous flux according to IEC 62722-2-1

6.000 lm

Light source

LED not replaceable

Power factor

0,9

Type of wiring

Suitable for through-wiring

Number of poles

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)

REACH Indicator

Datenblatt

4058075300903_tds_de.pdf asset-8932022.jpg asset-8932026.jpg asset-11301491.pdf asset-6723459.jpg asset-6723545.jpg asset-13070670.pdf asset-11547848.jpg

Suitable for pendant suspension

Suitable for recessed mounting

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

Suitable for VDU workstations according to EN 12464-1

Suitable for number of light sources

Dimming 0-10 V

Dimming 1-10 V

DALI dimming

DMX dimming

Dimming DSI

Dimming potentiometer (device-integrated)

Dimming GPRS

Dimming LineSwitch

Dimming manufacturer-specific

Dimming Mains voltage modulation

Dimming phase cut-off

Phase control dimming

Programmable dimming

RF dimming

Dimming Sine Wave Reduction

Dimming Touch and Dim

Dimming Zigbee

Dimming with push-button

Dimming depending on the control gear

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

Integrated emergency power supply

With motion detector

With light sensor

Covering the luminaire with thermal insulation material possible

With air vents

Operation via Bluetooth

Cover material

Plastic opal

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Light color

white

Color rendering index CRI

80-89
