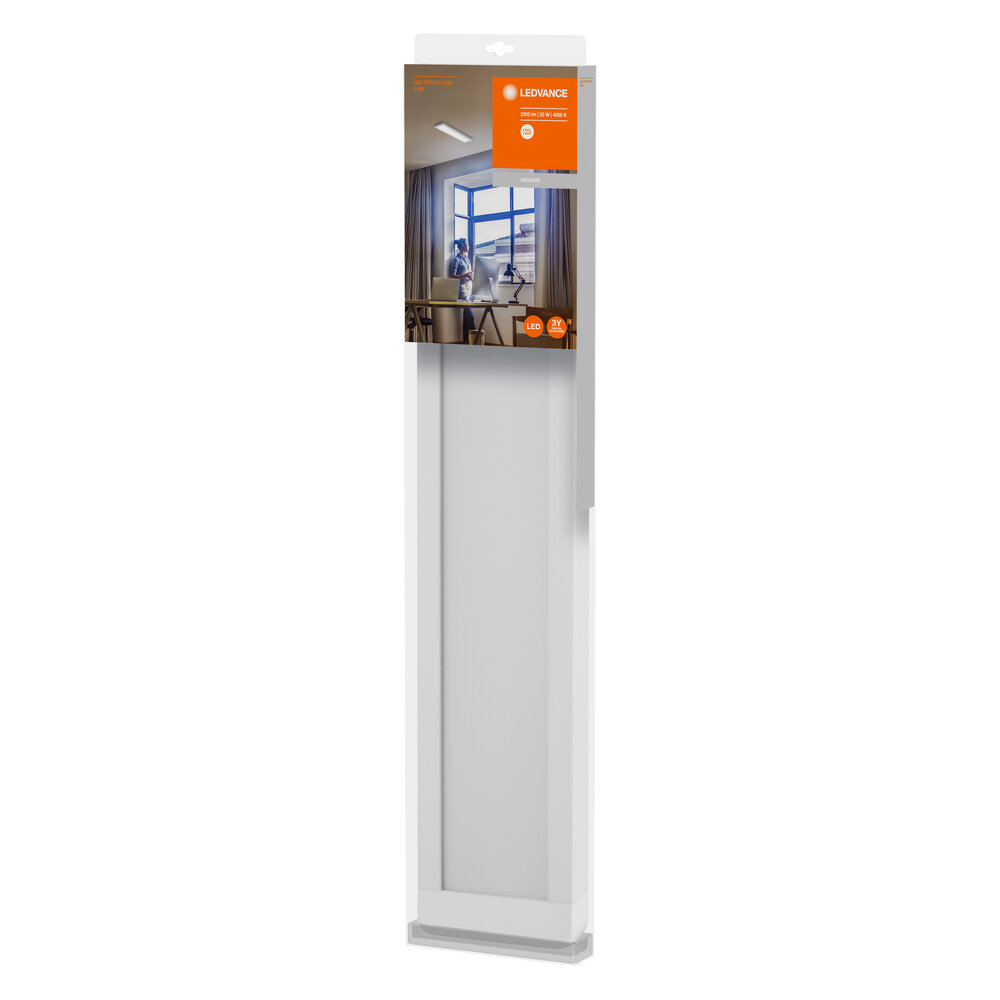

Ceiling lamp with a flat and modern design

SKU: 02-4058075271463
Datasheet: Download PDF
For more information, please refer to the data sheet!
Ceiling lamp with a flat and modern design. Product features: Replacement for conventional T8 luminaires. Wall and ceiling light strip. Material: aluminum (housing), polycarbonate (diffuser). Service life: up to 30,000 h. Available lengths: 0.6 m, 1.2 m. Colour temperature: 4,000 K. Product advantages: Flexible mounting options. Functional and minimalist design. Areas of application: Interior applications. Home offices. General interior lighting. Kitchens, work areas.
Weight
0,8 kg
Minimum order quantity

8 pieces

Order step

8 pieces

Weight

0,8 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

30

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

25 W

Color temperature

4.000 K

Protection class (IP)

IP20

Without dimming function

Yes

Width

130 mm

Height/depth

25 mm

Length

615 mm

Material of the housing

Aluminum

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

120 mA

Operating device

EVG

Light emission

direct

Rated service life L70/B50 at 25 °C

30.000 h

Color rendering index CRI

80-89

Impact resistance

IK03

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

100 lm/W

Rated luminous flux according to IEC 62722-2-1

2.500 lm

Type of wiring

Conclusion

Number of poles

2

Connection type

Screw terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

No

Datenblatt
Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Cover material

Plastic opal

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Power factor

0,9

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
