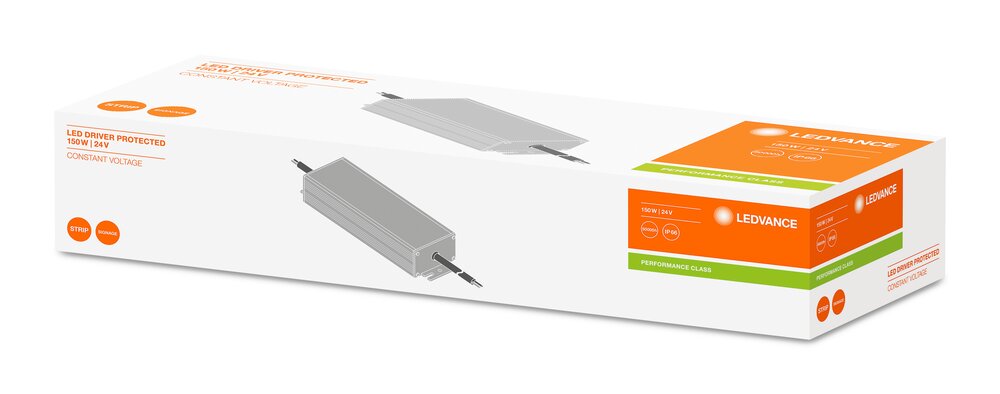

Constant Voltage Outdoor LED Driver

SKU: 02-4058075239975
Datasheet: Download PDF
For more information, please refer to the data sheet!
Constant voltage LED driver for outdoor use. Product features: Available in 30 W, 60 W, 100 W, 150 W and 250 W. Lifetime: up to 50,000 h (at max. tc temperature). Degree of protection: IP66. Operating temperature range at TA: -40... 50 °C. Supply voltage: 220... 240 V. Operating frequency: 50/60 Hz. Surge protection: up to 4 kV (L-N) for 30W/60W, 6 kV (L-N) / 6 kV (L/N-PE) for 100W/150W/250W. Short circuit and overload protection. Product advantages: Optimized for operation with 24 V flexible LED light strip. 5-year warranty. Very stable output power. Quick and easy installation thanks to pre-wiring. High efficiency and reliability. Installation in very cold and hot environments. Areas of application: Suitable for indoor and outdoor installations. Façade and building lighting. Particularly suitable for lighting public spaces. Bathrooms, kitchens and outdoor areas. Offices, shopping malls, hospitals, restaurants, hotels.
Weight
0,97 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,97 kg

Product group

LED control gear (EC002710)

Execution

Static

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

No

Protection class (IP)

IP66

Protection class

I

Length

219 mm

Width

63 mm

Height

38 mm

Suitable for outdoor use

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

No

Datenblatt
4058075239975_tds_de.pdfasset-7079159-5.pdfasset-6349462-1.pdfasset-13080737-1.pdfasset-5619366.jpg
Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

IFTTT support available

No
