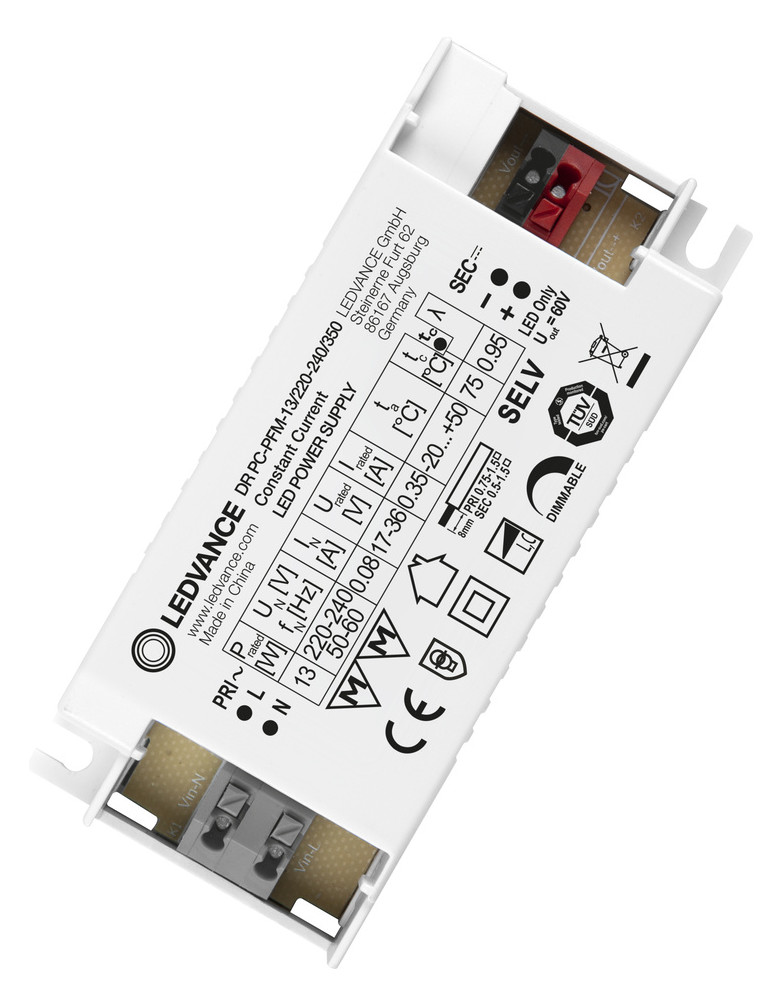

Constant Current LED Driver with Dimming Interface for Phase Lead

SKU: 02-4058075239814
Datasheet: Download PDF
For more information, please refer to the data sheet!
Constant current LED driver with dimming interface for phase leading. Product features: Available in 13 W, 18 W, 25 W and 35 W. Independent installation with optional cable clamp kit. Dimmable via phase cut and trailing edge. Dimmable from 10... 100 %. Service life: up to 50,000 h (at max. tc temperature). Degree of protection: IP20. Constant output current. Low ripple current < 5%. Supply voltage: 220... 240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: Safety extra-low voltage (SELV). Reversible over-temperature, overload, short-circuit and working current protection. Product Benefits: Allows installation with commonly used phase-cut and cut-off dimmers. 5-year warranty. Slim housing for narrow installations. High efficiency and reliability. Areas of application: Suitable for LED lights and LED modules. Suitable for luminaires of protection class I and II. For indoor SELV installations. Offices, shopping malls, hospitals, restaurants, hotels. Technical equipment: Cable clamp kit for optimized strain relief.
Weight
0,098 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,098 kg

Product group

LED control gear (EC002710)

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Suitable for DC voltage (primary side)

No

Protection class (IP)

IP20

Protection class

II

Length

97 mm

Width

43 mm

Height

30 mm

Dimming manufacturer-specific

Yes

Dimming phase cut-off

Yes

Phase control dimming

Yes

Dimming with push-button

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

No

Datenblatt
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming Mains voltage modulation

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Operation via Bluetooth

No

IFTTT support available

No

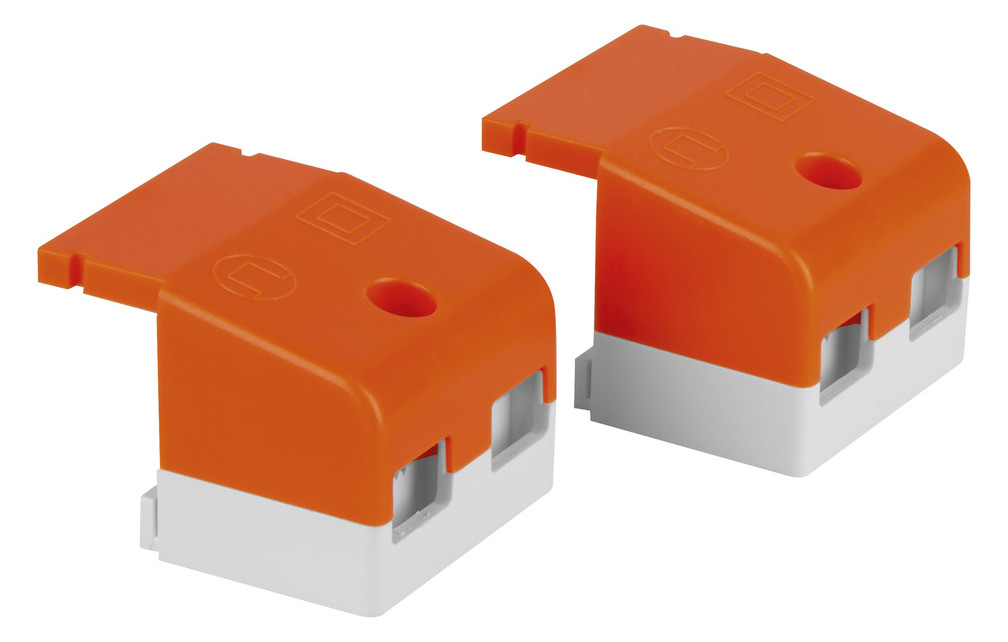

Matching accessories for this product
