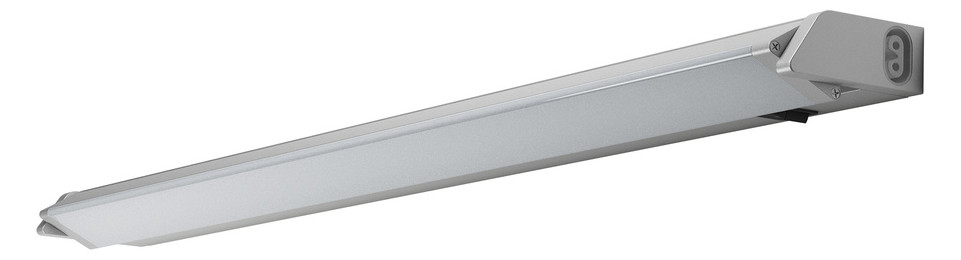

Under-cabinet light with tilt function

SKU: 02-4058075227972
Datasheet: Download PDF
For more information, please refer to the data sheet!
Under-cabinet light with tilt function. Product Features: Housing Material: Aluminum. Double socket suitable for devices up to 2000 W in total (1000 W + 1000 W per socket). Product advantages: Easy and fast alignment thanks to the simple plug-in system. Very homogeneous light. Daisy-chaining of up to 10 luminaires. Use additional electrical (kitchen) equipment with the help of the included double socket. The socket can be easily switched between the Linear LED TURN products. Areas of application: Shelf undermount lighting. For interior lighting only. Technical equipment: Full mounting and connection accessories included.
Weight
0,419 kg
With illuminant

Yes

Material

Aluminum

Housing color

silver

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

48 mA

Operating device

EVG

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

30.000 h

Constant luminous flux control

No

Protection class (IP)

IP20

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Covering the luminaire with thermal insulation material possible

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

With switch

Yes

With motion detector

No

Max. System performance

10 W

Rated luminous flux according to IEC 62722-2-1

620 lm

Luminaire luminous efficacy

83 lm/W

Color temperature

3.000 K

Color rendering index CRI

80-89

Power factor

0,9

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Width

60 mm

Height/depth

24 mm

Length

557 mm

Type of wiring

Conclusion

Number of poles

2

Electrical connection with plug-in system

No

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

IFTTT support available

Yes
