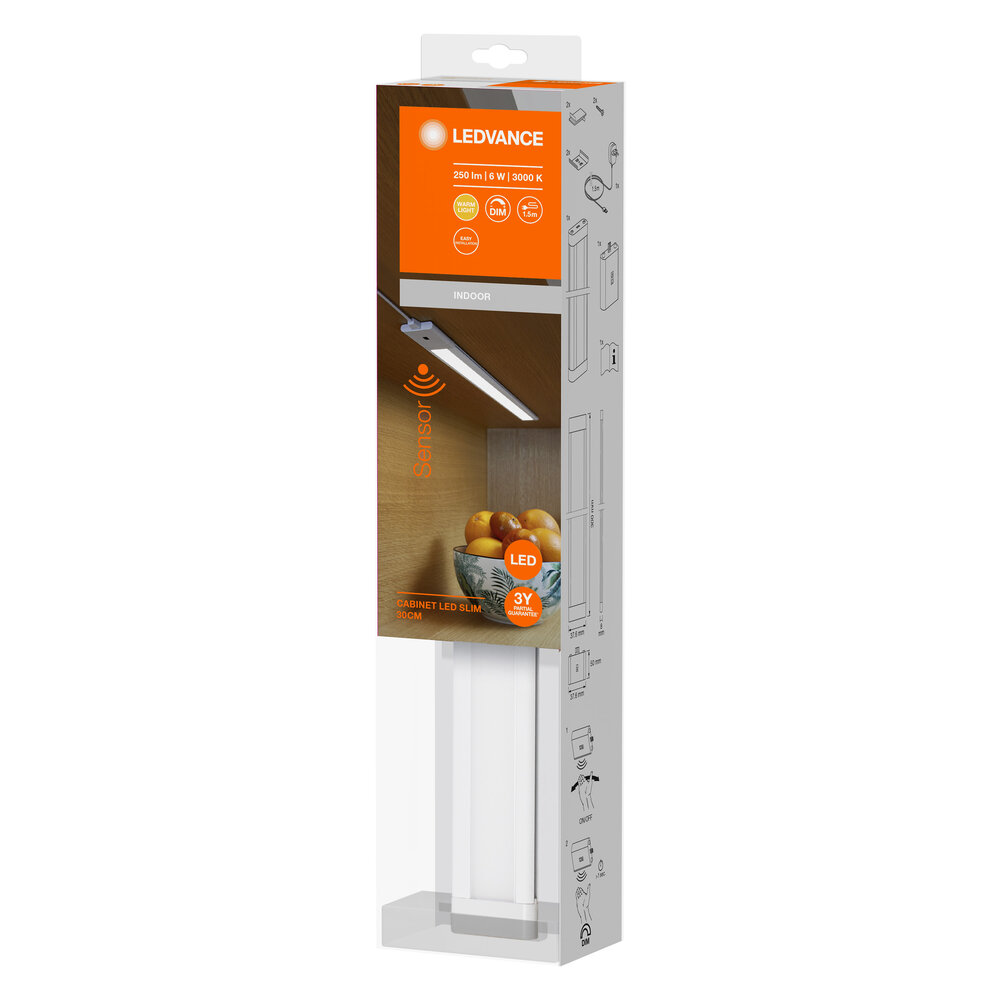

Linear low-voltage under-cabinet luminaires

SKU: 02-4058075227699
Datasheet: Download PDF
For more information, please refer to the data sheet!
Linear low-voltage under-cabinet luminaires. Product features: Luminous flux: up to 470 lm. Switching on and off by movements with a distance of 5 cm in front of the infrared motion sensor. Stepless dimming by covering the infrared motion sensor at a distance of 5 cm for at least one second. Material: Aluminum. Product colour: White. Available in two lengths: 30 cm and 50 cm. Available as a single and double light set. Product advantages: Low-voltage luminaire for DC operation with external driver. Very slim shape. Homogeneous light distribution. Easy and quick attachment to almost any surface (adhesive strips or screws). Areas of application: Shelf and undermount lighting. Technical equipment: External power adapter (cable length: 1.5 m) included.
Weight
0,2 kg
Suitable for wall mounting

Yes

Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for recessed mounting

No

Suitable for surface mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

With illuminant

Yes

Housing color

white

Cover material

Plastic opal

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

60 mA

Operating device

EVG

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Color consistency (McAdam ellipse)

SDCM6

Light emission

direct

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

30.000 h

Protection class (IP)

IP20

Impact resistance

IK03

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

Yes

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Max. System performance

6 W

Luminaire luminous efficacy

42 lm/W

Rated luminous flux according to IEC 62722-2-1

250 lm

Light color

white

Color temperature

3.000 K

Color rendering index CRI

80-89

Power factor

0,5

Constant luminous flux control

No

Width

37,6 mm

Height/depth

8 mm

Length

300 mm

Type of wiring

Conclusion

Number of poles

2

Photobiological safety according to EN 62471

RG1

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Operation via Bluetooth

No

Compatible with Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
