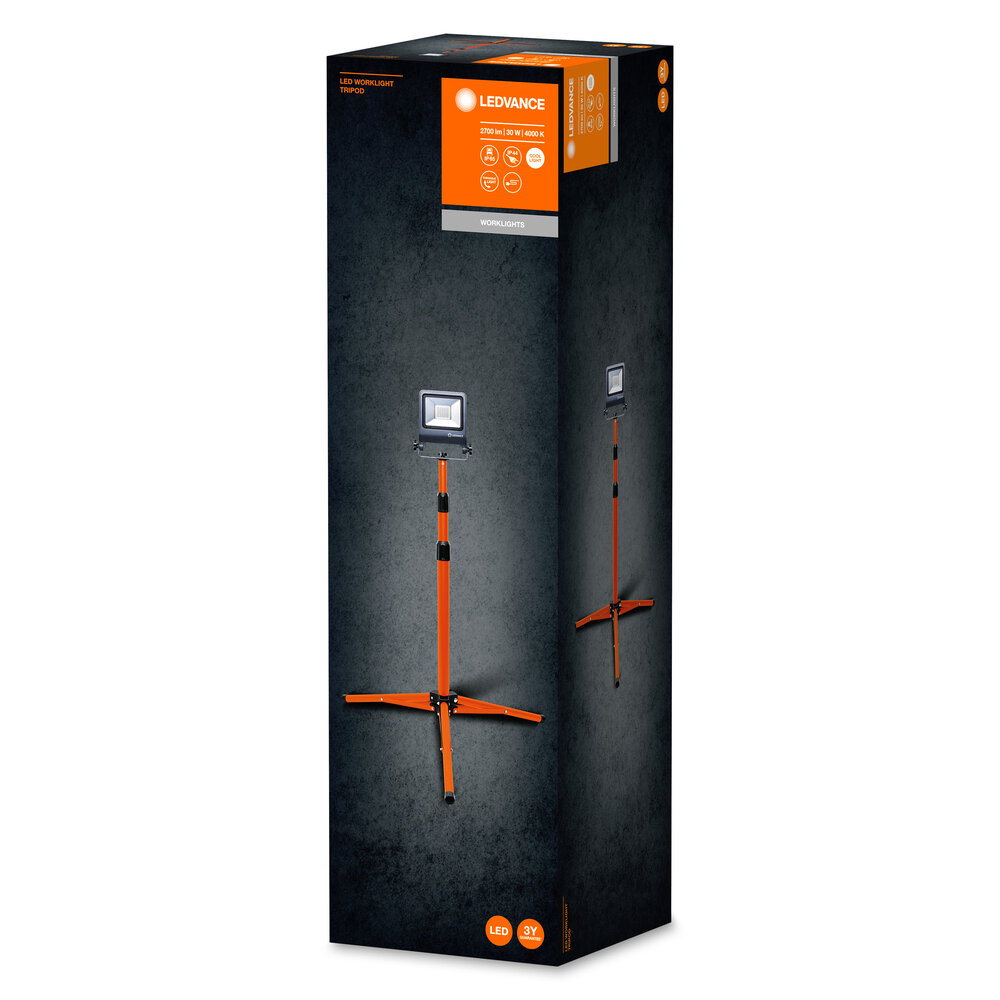

Versatile LED work light with tripod

SKU: 02-4058075213937
Datasheet: Download PDF
For more information, please refer to the data sheet!
Versatile LED work light with tripod. Product features: Available with 1 or 2 lamp heads. Rotation angle of lamp head: 360°, swivel angle: 180°. Degree of protection, luminaire head and housing: IP65, degree of protection, plug: IP44. Tripod height adjustable up to 1.8 m total height. Quick release for adjusting the lamp head angle. Plug type E/F. Product advantages: Collapsible for easy storage. Energy savings of up to 80% compared to halogen lamp work lights. Partially frosted tempered glass cover, for uniform illumination. Areas of application: Renovation. Garages. Cellar. Workshop. Technical equipment: Full mounting and connection accessories included.
Weight
2,9 kg
Suitable for surface mounting

No

Suitable for recessed mounting

No

Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

Yes

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

rotatable

With motion detector

No

With light sensor

No

With illuminant

Yes

Material of the housing

Aluminum

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

145 mA

Operating device

EVG

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Reflector

Without

Light emission

direct

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

25.000 h

Constant luminous flux control

No

Protection class (IP)

IP65

Impact resistance

IK06

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 45 °C

Max. System performance

30 W

Light color

white

Color temperature

4.000 K

Color rendering index CRI

80-89

Luminous flux

2.700 lm

Rated luminous flux according to IEC 62722-2-1

2.700 lm

Power factor

0,9

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Width

680 mm

Height/depth

1.750 mm

Length

780 mm

Type of wiring

Conclusion

Number of poles

3

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Luminaire luminous efficacy

90 lm/W

Photobiological safety according to EN 62471

RG1

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

IFTTT support available

Yes

Color consistency (McAdam ellipse)

SDCM6

Compatible with Apple HomeKit

No

Operation via Bluetooth

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No
