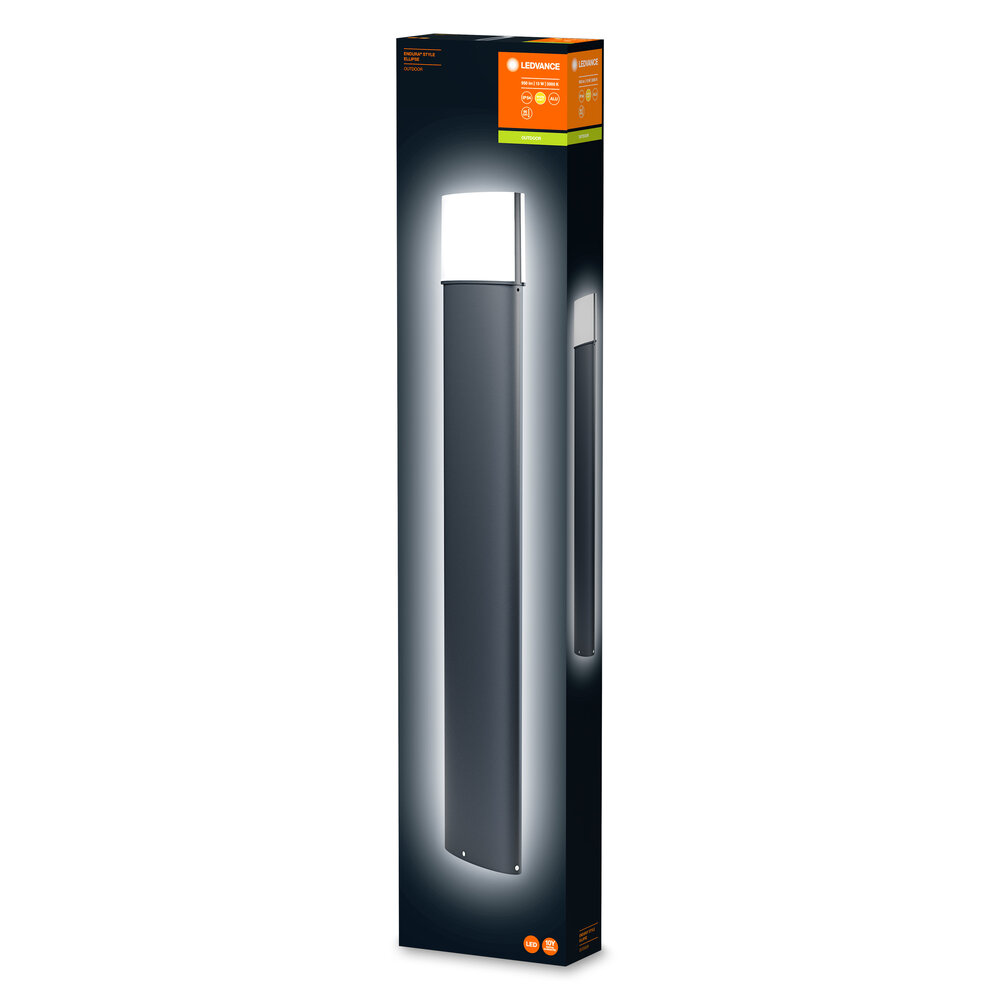

Decorative and very bright lights

SKU: 02-4058075205116
Datasheet: Download PDF
For more information, please refer to the data sheet!
Decorative and very bright light fixtures. Product features: Very bright and functional LED outdoor lights. Die-cast aluminum housing. Available as wall and bollard lights. Product advantages: Energy-efficient thanks to LED technology. Easy and quick installation. Areas of application: Outdoor application (IP44). gardens, balconies and other outdoor areas. Illumination of facades. Path lighting. Driveways. Technical equipment: Full mounting and connection accessories included.
Weight
3,5 kg
Minimum order quantity

2 pieces

Order step

2 pieces

Weight

3,5 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Max. System performance

12,5 W

Color temperature

3.000 K

Protection class (IP)

IP44

Without dimming function

Yes

Width

186 mm

Height/depth

900 mm

Length

75 mm

Material of the housing

Aluminum

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

65 mA

Operating device

EVG

Color consistency (McAdam ellipse)

SDCM6

Light emission

direct

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Luminaire luminous efficacy

76 lm/W

Rated luminous flux according to IEC 62722-2-1

950 lm

Type of wiring

Conclusion

Number of poles

3

Connection type

Screw terminal

Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

andere elektrische Leuchten und Beleuchtungskörper, anderweitig weder genannt noch inbegriffen, mit LED-Lichtquelle, andere als Scheinwerfer, aus anderen Stoffen als aus Kunststoffen (94054239)

REACH Indicator

No

Datenblatt
Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Housing color

gray

Cover material

Plastic opal

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Color rendering index CRI

80-89

Power factor

0,5

Compatible with Casambi

No

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
