Pendant luminaires with edge feed for direct and indirect lighting, strong glare control, 1200 mm

SKU: 02-4058075144606
Datasheet: Download PDF
For more information, please refer to the data sheet!
Pendant luminaires with edge feed for direct and indirect lighting, strong glare control, 1200 mm. Product features: Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70 %) and indirect (30 %) light emission. Driver integrated into the remote driver box. UGR ≤ 19 according to EN12464-1. High luminous efficacy: up to 110 lm/W. Lifetime (L70/B50): 80,000 h (at 25 °C). Follows the uniform design language of LEDVANCE (SCALE Design). Very narrow aluminum housing. Luminaire versions with IoT-enabled DALI-2 driver or Zigbee 3.0 technology available. Product advantages: Pendant luminaires with edge lighting for direct (70%) and indirect lighting (30%). Attractive and functional design for office applications. Good glare control (UGR ≤ 19). Very homogeneous light. Low maintenance and low operating costs. External driver for extended flexibility. Special light guidance design for low glare lighting. Easy and quick installation. Low-flicker light thanks to special electronic ballast. 5-year warranty. Applications: Efficient replacement for traditional T8 and T5 light strips. Bureaus. Meeting. Conference rooms. Reception areas, entrance areas. Technical equipment: Suspension kit included.
Weight
4,325 kg
Minimum order quantity

2 pieces

Order step

2 pieces

Weight

4,325 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

No

Max. Number of lights Circuit breaker C16

55

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Housing color

white

Max. System performance

36 W

Color temperature

3.000 K

Protection class (IP)

IP20

Without dimming function

Yes

Width

300 mm

Height/depth

16 mm

Length

1.200 mm

Suitable for number of light sources

0

Version

Without

Installation length

1.175 mm

Surface protection housing

powder-coated

Material of the housing

Aluminum

Design of the grid

other

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

230 mA

Operating device

EVG

Light distributor

Diffuser lens/optics/panel

Color consistency (McAdam ellipse)

SDCM4

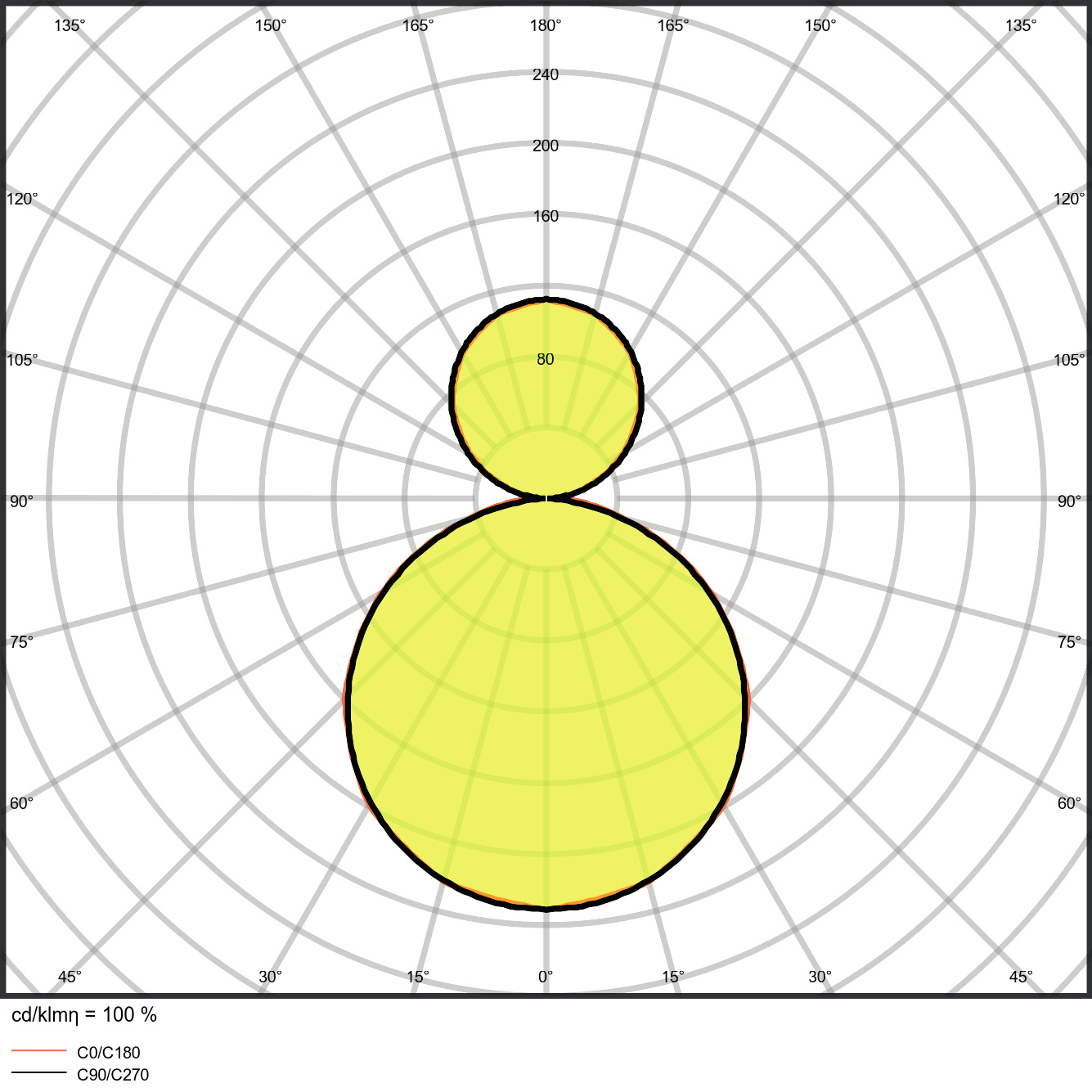

Light emission

direct/indirect

Rated service life L70/B50 at 25 °C

80.000 h

Rated service life L80/B10 at 25 °C

60.000 h

Rated service life L90/B10 at 25 °C

50.000 h

Color rendering index CRI

80-89

Impact resistance

IK03

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 45 °C

Luminaire luminous efficacy

105 lm/W

Rated luminous flux according to IEC 62722-2-1

3.800 lm

Light source

LED not replaceable

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

No

Datenblatt
4058075144606_tds_de.pdfasset-8843738.pdfasset-6812791.jpgasset-6812824.jpgasset-8663817.pdfasset-6069284.jpg
Suitable for wall mounting

No

Suitable for recessed mounting

No

Suitable for surface-mounted mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Suitable for number of light sources

0

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on the control gear

No

Rated ambient temperature according to IEC62722-2-1

-20 – 45 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Operation via Bluetooth

No

Cover material

Transparent plastic

Light distribution

symmetrical

Direct/indirect components separately adjustable

No

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Light color

white

Glare limitation (UGR)

19

Power factor

0,9

With suspension

Yes

Pendulum length

2.000 mm
