LED tubes for electronic ballasts (ECG), electromagnetic ballasts (KVG) and mains voltage

SKU: 02-4058075137547
Datasheet: Download PDF
For more information, please refer to the data sheet!
LED tubes for electronic ballasts (ECG), electromagnetic ballasts (KVG) and mains voltage. Product features: T8 glass LED tube with G13 base. Compatible with conventional and many commercially available electronic ballasts (see also compatibility list) and mains voltage. Low flicker according to EU 2019/2020. Lifetime: up to 30,000 h. Mercury-free lamps. Product advantages: No sagging thanks to glass technology. Also suitable for operation at low temperatures. Easy installation. Areas of application: General lighting in ambient temperatures of -20...+45 °C. corridors, stairwells and parking garages. Warehouses.
Weight
0,284 kg
Minimum order quantity

10 pieces

Order step

10 pieces

Weight

0,284 kg

Product group

LED lamp/multi-LED (EC001959)

Nominal voltage

220 – 240 V

Rated current

90 mA

Lamp wattage

19 W

Voltage type

AC

Luminous flux

2.000 lm

Rated luminous flux according to IEC 62612

2.000 lm

Lamp luminous efficacy

105 lm/W

Color rendering index CRI

80-89

Lamp shape

Tube, double-ended

Filament lamp

No

Glass/cover version

frosted

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Base

G13

Color

white

Color temperature

4.000 K

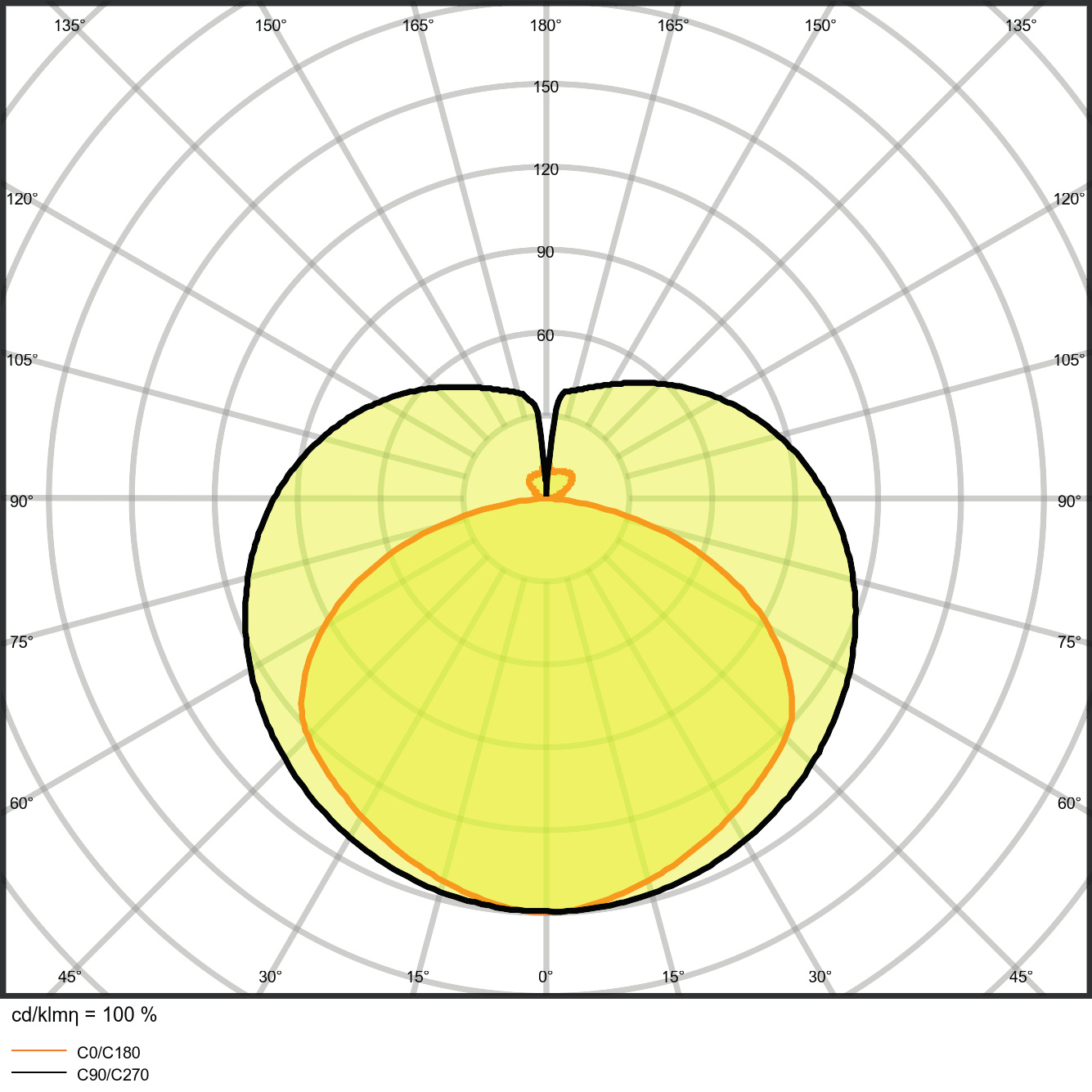

Beam angle

160 °

Color consistency (McAdam ellipse)

SDCM6

Diameter

28 mm

Length

1.500 mm

Protection class (IP)

IP20

Energy Efficiency Index (EEI)

0,13

Lamp designation

T8

Energy efficiency class

F

Min. number of switching operations

100.000

Weighted energy consumption in 1,000 hours

19 kWh

Average rated service life

30.000 h

RoHS applicable

Excluded

Country of origin

China (CN)

Commodity code

Light-emitting diode lamps (LED lamps) (85395200)

REACH Indicator

Yes

Datenblatt
4058075137547_tds_de.pdfasset-7601964.jpgasset-7575416.pdfasset-13016007-23.pdfasset-13016009-23.pdf
Dimmable

No

With remote control

No

Power factor

0,9

Housing color

white

Dimming phase cut-off

No

Phase control dimming

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming Bluetooth

No

Dimming Wi-Fi

No

Without dimming function

Yes

Energy efficiency class according to EU Directive 2019/2015

F

With motion detector

No

IFTTT support available

No
