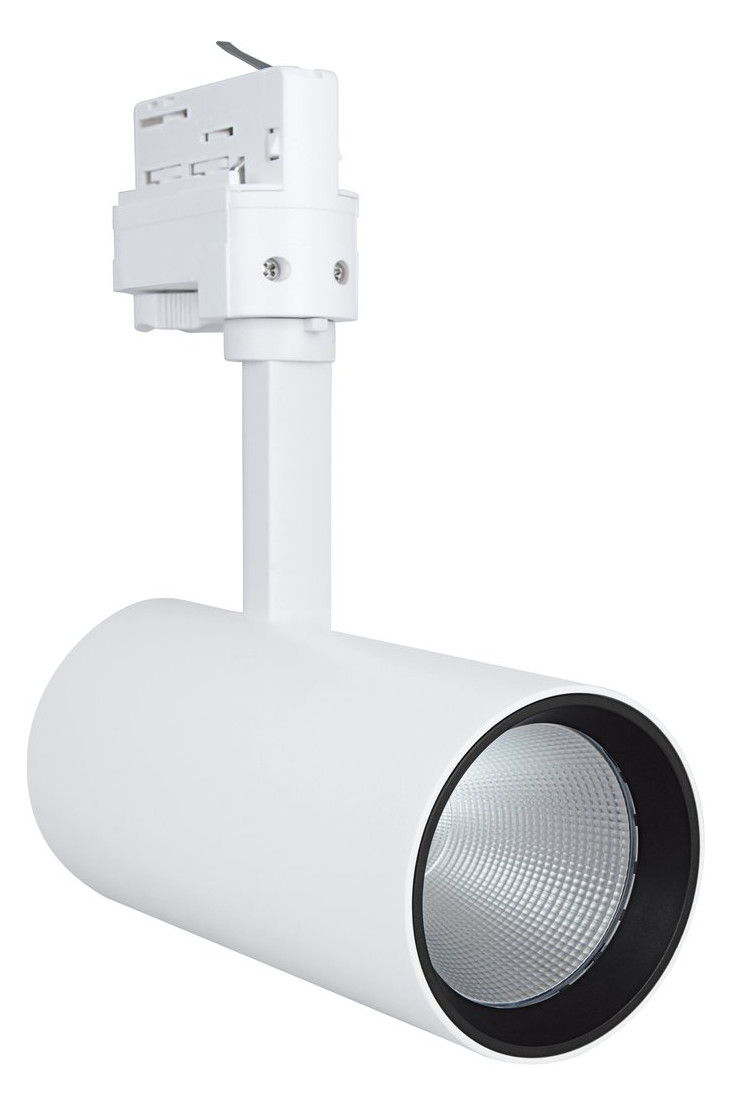

Sleek, minimalist 3-phase track spotlight, low wattage

SKU: 02-4058075113442
Datasheet: Download PDF
For more information, please refer to the data sheet!

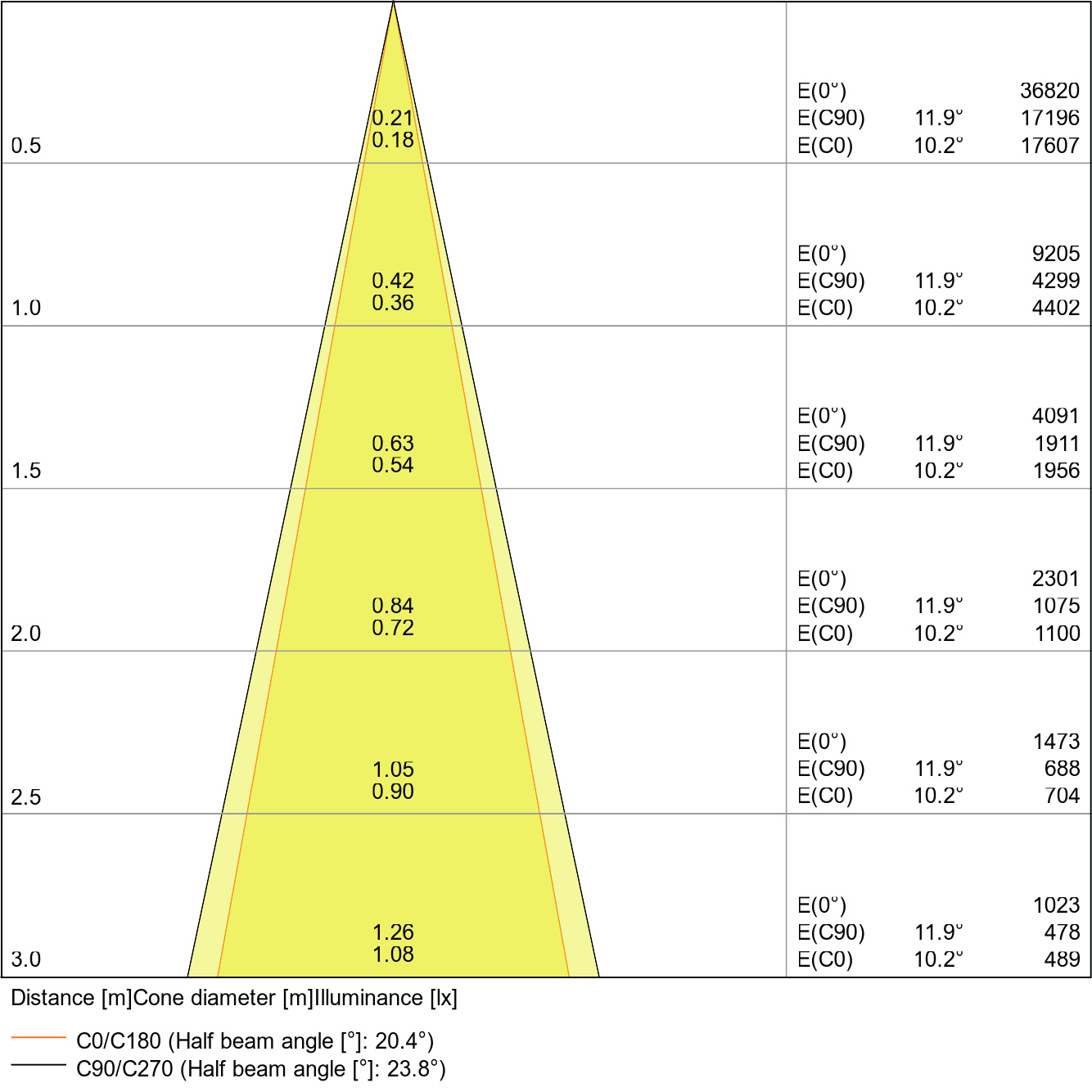

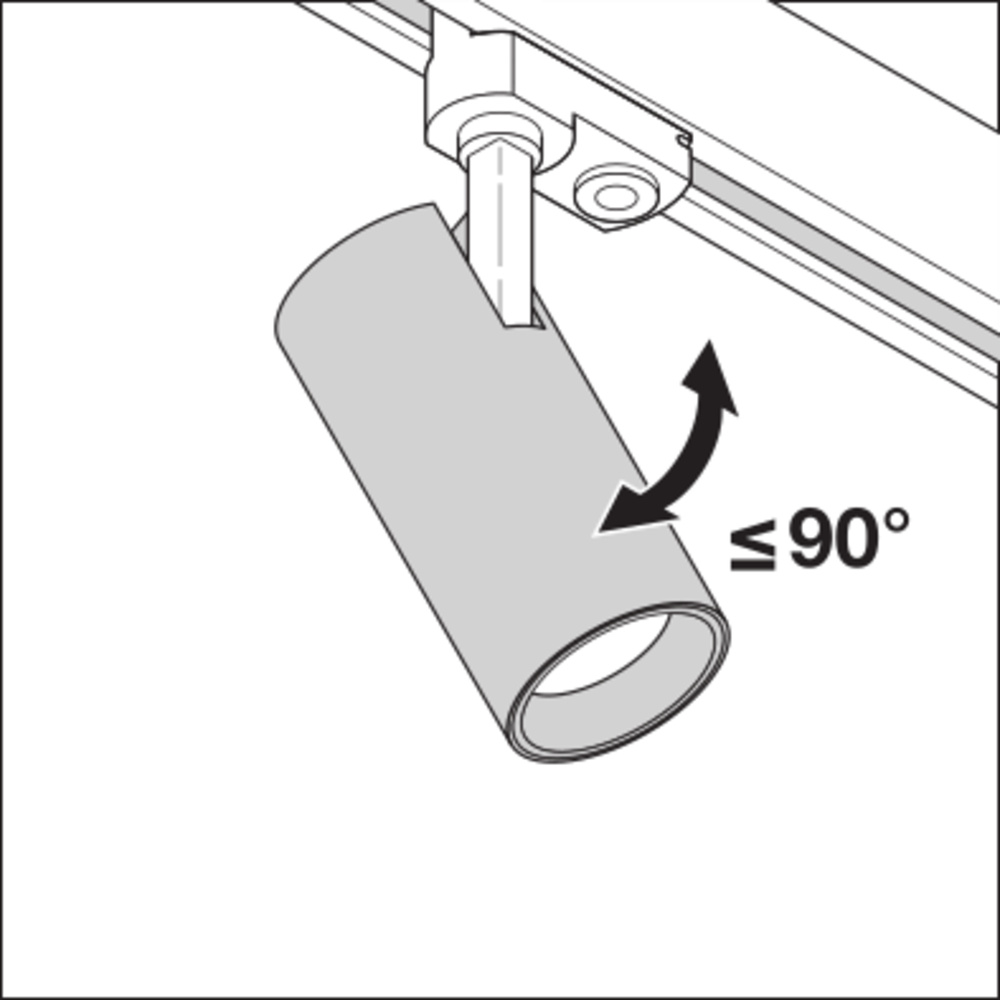

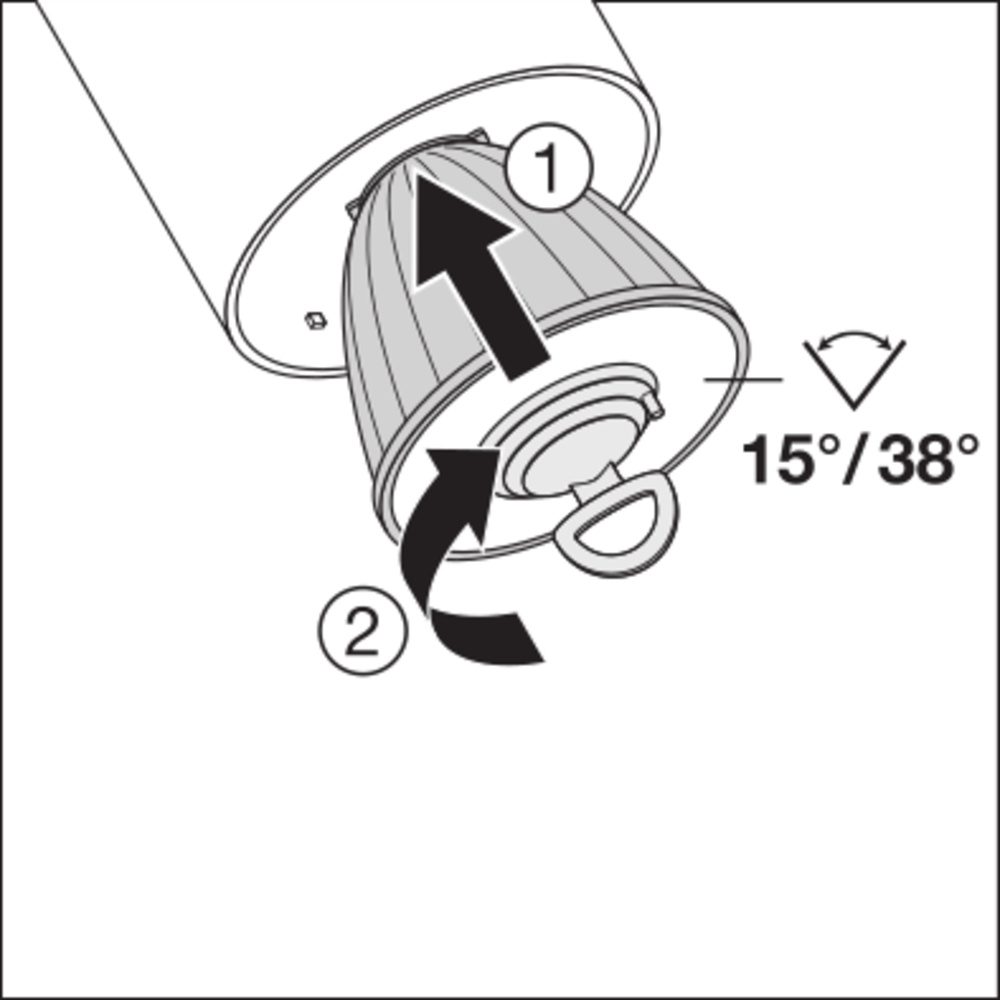

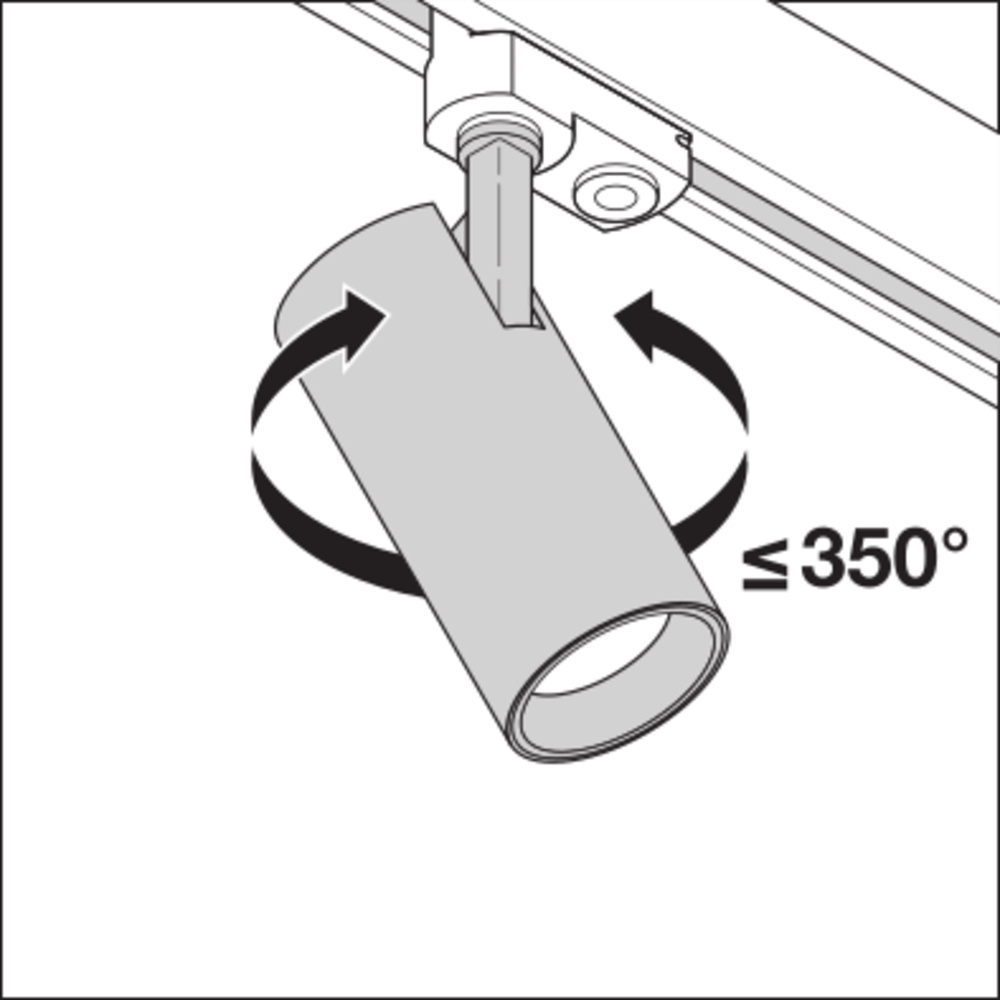

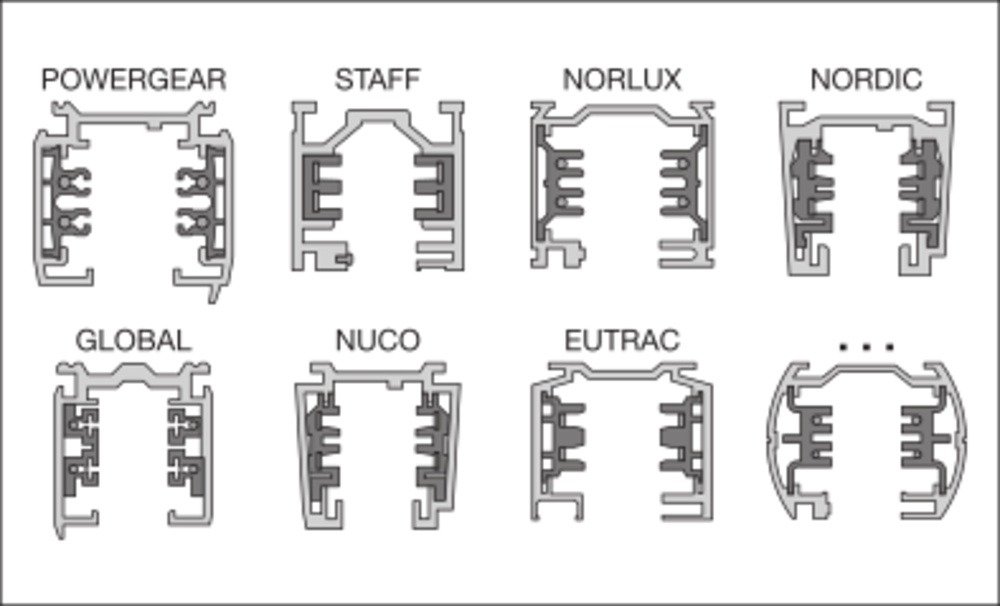

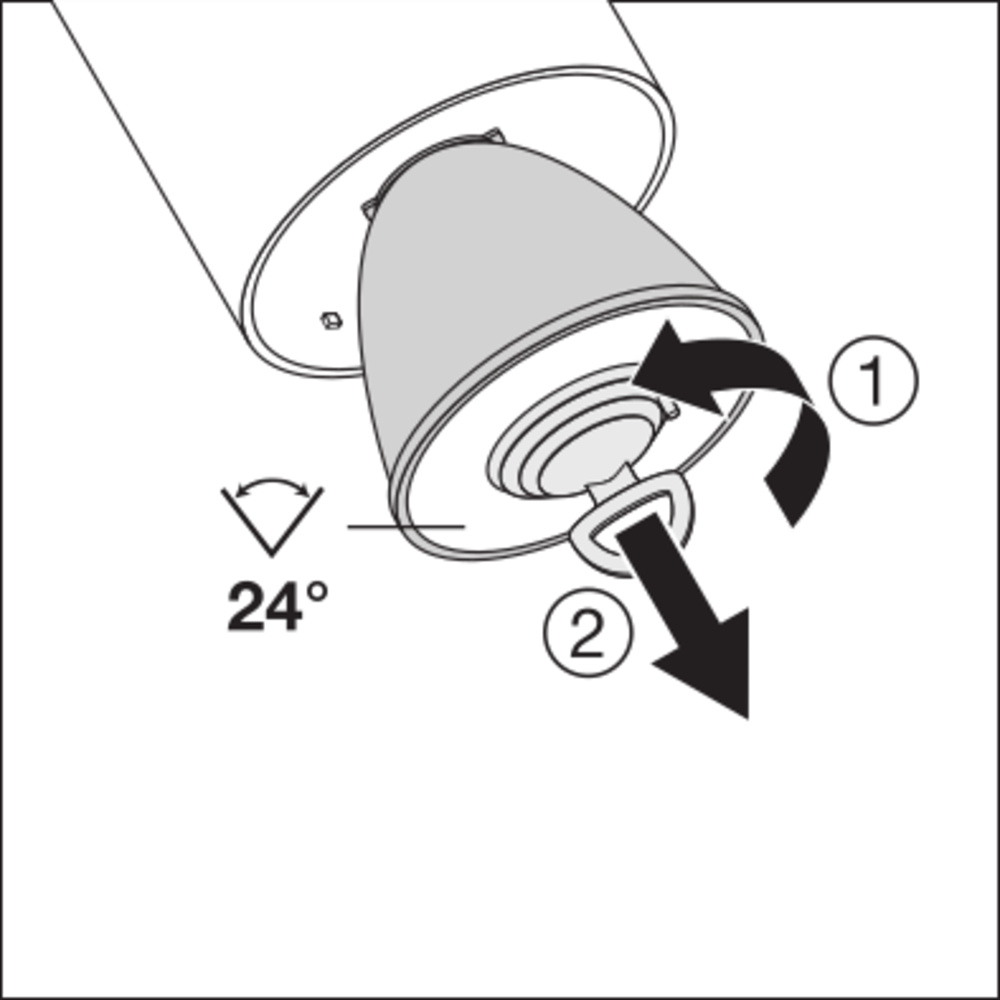

Sleek, minimalist 3-phase track spotlight, low wattage. Product features: Compact track spotlight with integrated ballast. Rotation angle: 350°, tilt angle: 90°. Luminaire luminous efficiency: up to 80 lm/W. Available with colour temperature 3000 K or 4000 K. Very good colour rendering index Ra: > 90. Colour rendering index Ra9: > 50. Initial colour consistency: ≤ 3 SDCM (threshold value unit). Equipped with reflector with 24° beam angle. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminium. Available in Matte White (similar RAL9016), Matte Black (similar RAL9004), Concrete Gray (similar RAL7042). Product advantages: Included 3-phase adapter compatible with common busbars (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC). Deep reflector and black anti-glare ring for minimal glare (UGR < 16). Reflector easily replaceable thanks to bayonet lock and rubber suction cup. No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year warranty. Applications: Direct replacement for luminaires that use HID lamps. Accent. Fashion stores, accessory stores. Retail. Hotels, Restaurants, Shops. Technical equipment: Accessory reflectors with 15° or 38° beam angle available.
Weight
0,77 kg
Minimum order quantity

4 pieces

Order step

4 pieces

Weight

0,77 kg

Product group

Downlight/spotlight/floodlight (EC001744)

Suitable for wall mounting

Yes

Replaceable operating device

No

Dimming DALI-2

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Max. Number of lights Circuit breaker C16

41

IFTTT support available

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

No

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

Rotatable and swiveling

Light source

LED not replaceable

Suitable for number of light sources

0

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

LED rated current with constant current

110 mA

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Reflector

high gloss

Light distributor

Reflector

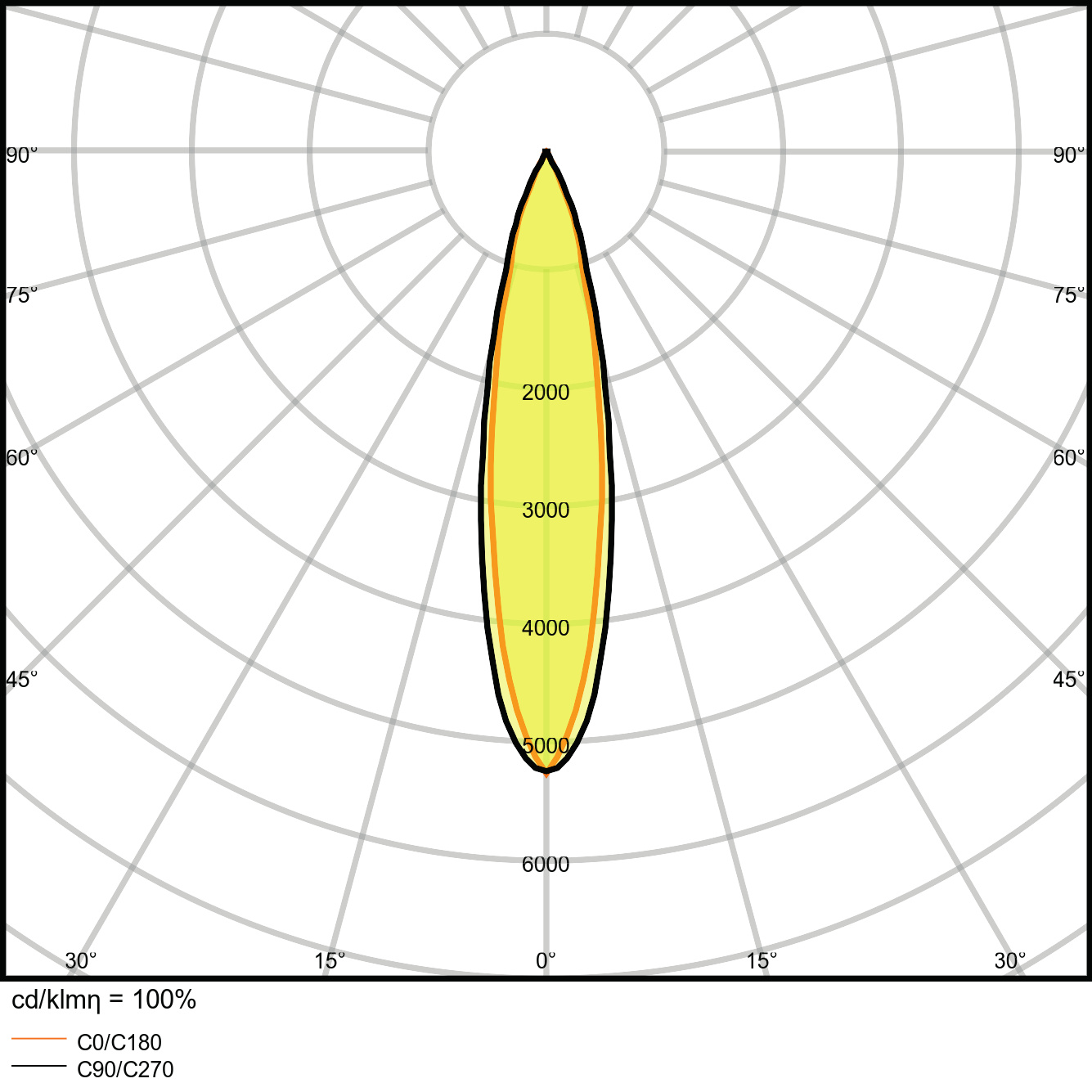

Light distribution

symmetrical

Light emission

direct

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

45.000 h

Protection class (IP)

IP20

Impact resistance

IK02

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Max. System performance

25 W

Color temperature

3.000 K

Color rendering index CRI

90-100

Luminous flux

1.750 lm

Rated luminous flux according to IEC 62722-2-1

1.750 lm

Power factor

0,9

Height/depth

255 mm

Length

75 mm

Outer diameter

75 mm

Number of poles

2

Connection type

Busbar adapter

Luminaire luminous efficacy

70 lm/W

Photobiological safety according to EN 62471

RG1

Color consistency (McAdam ellipse)

SDCM3

Suitable for surface mounting

Yes

Suitable for pendant suspension

Yes

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

No

Datenblatt
4058075113442_tds_de.pdfasset-8626320-17.jpgasset-8626322-17.jpgasset-8626324-17.jpgasset-8626326-17.jpgasset-8626328-17.jpgasset-4144375-23.pdfasset-4685623-23.pdfasset-3599366.jpgasset-3599356.jpgasset-13098495-17.pdfasset-3586596.jpg
Suitable for surface-mounted mounting

Yes

Suitable for recessed mounting

No

Suitable for ceiling mounting

No

With motion detector

No

With light sensor

No

Suitable for number of light sources

0

Dimming depending on the control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Rated ambient temperature according to IEC62722-2-1

-20 – 40 °C

Integrated emergency power supply

No

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

Cover material

Transparent plastic

Rated current

110 mA

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Light color

white

Width

75 mm

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Operation via Bluetooth

No
