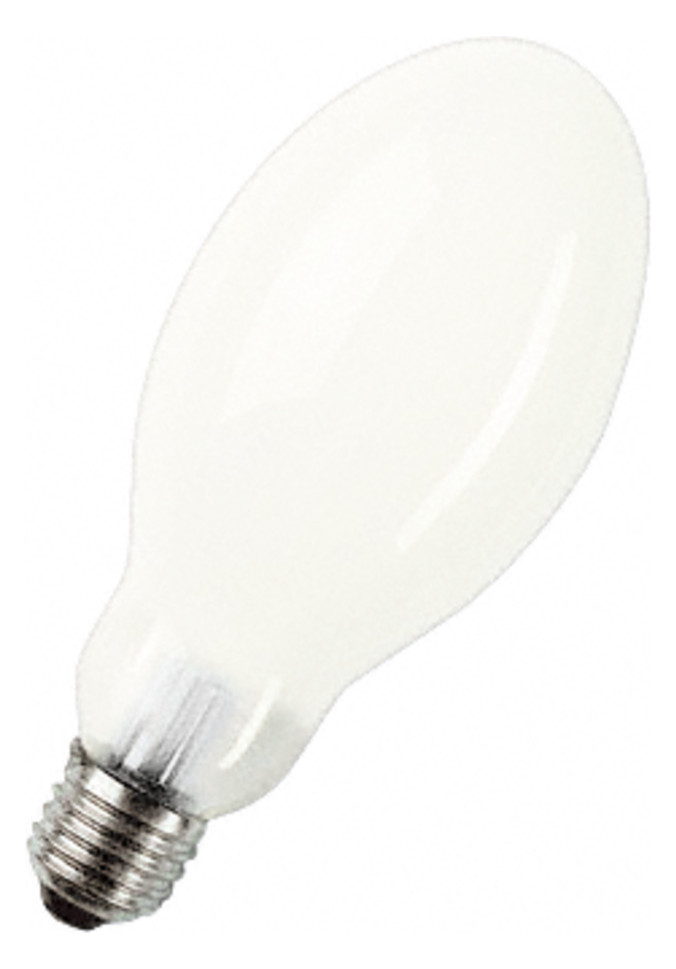

Metal halide lamps with quartz technology for closed luminaires

SKU: 02-4058075039803

Datasheet: Download PDF

For more information, please refer to the data sheet!

Metal halide lamps with quartz technology for closed luminaires. Product features: POWERSTAR® quartz technology. Light colours: neutral white (NDL), daylight (D). Product advantages: Screw base E40 for easy lamp handling. Thanks to the UV filter, the maximum permissible UV limits according to IEC 61167 are significantly undercut. Exhibition and exhibition halls. Sports and multi-purpose halls. Approved for operation in closed luminaires only. Outdoor applications only in suitable luminaires.

Weight

0,249 kg

Minimum order quantity

12 pieces

Order step

12 pieces

Weight

0,249 kg

Product group

Metal halide lamp without reflector (EC000037)

Lamp wattage

440 W

Lamp voltage

127 V

Luminous flux

40.000 lm

Base

E40

UV protection

Yes

Color rendering index CRI

60-69

Color temperature

3.800 K

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Lamp luminous efficacy

90 lm/W

Lamp shape

ellipsoid

Burner material

Quartz

Firing position

h45

Diameter

120 mm

Total length

290 mm

External ignition device required

Yes

External ballast required

Yes

Enclosed luminaire required

Yes

Solarium lamp

Lamp designation

ED37

Energy efficiency class

Weighted energy consumption in 1,000 hours

450 kWh

Average rated service life

9.000 h

RoHS applicable

Yes

Country of origin

Germany (DE)

Commodity code

Metal halide lamps (85393290)

REACH Indicator

Datenblatt

4058075039803_tds_de.pdf asset-13056627.pdf asset-13042713.pdf

Light color

638

Energy efficiency class according to EU Directive 2019/2015
