Linear Light Engines
31. October 2024

Linear Light Engines

EU-Energielabel für dieses Produkt
SKU: 02-4052899606081
Datasheet: Download PDF
For more information, please refer to the data sheet!

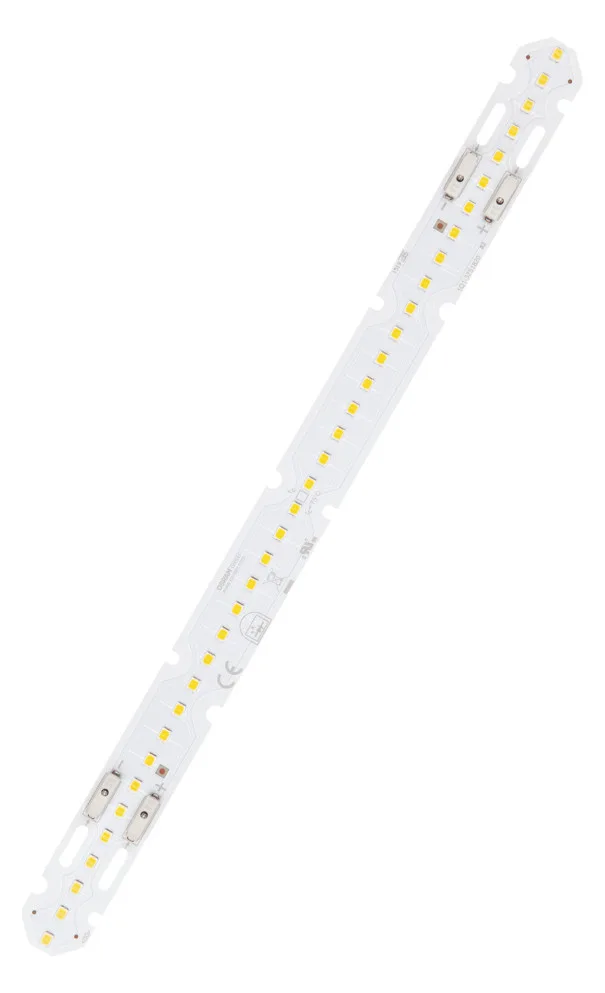

Linear Light Engines. Product features: Module luminous efficiency: up to 206 lm/W. Available with luminous flux: 245 lm at 62 mm, 275 lm at 70 mm. Available with luminous flux: 550 lm at 140 mm. Available with luminous flux: 1,100 lm or 2,000 lm at 280 mm. Available with luminous flux: 2,200 lm or 4,000 lm at 560 mm. Available with colour temperature: 2,700 K, 3,000 K, 4,000 K, 5,000 K or 6,500 K. Initial color consistency: ? 3 SDCM (threshold value unit). Average service life (L80 B50): > 70,000 h (at temperature at Tc= 50 °C). CE marked, ENEC certified, UL listed. . Product advantages: Narrow LED module due to small and flexible form factor. High homogeneity thanks to small LED pitch. High voltage (HV) optimized for non-insulated, low voltage (LV) optimized for SELV operation. Adjustable luminous flux, efficiency and service life. Use PrevaLED Linear Optics to direct light to where it's needed. . Areas of application: Office. Industry. .
Weight
0,02 kg
Minimum order quantity

60 pieces

Order step

60 pieces

Weight

0,02 kg

Product group

LED module (EC000996)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Lamp wattage

5,9 W

Voltage type

DC

External operating device required

Yes

Lamp voltage

23,6 V

Number of LEDs

36

Shape

rectangular

Light color according to EN 12464-1

neutral white 3300 to 5300 K

Flexible

No

Color temperature

4.000 K

Luminous intensity

367 cd

Luminous flux

1.142 lm

Beam angle

120 °

Color consistency (McAdam ellipse)

SDCM3

Suitable for general lighting

Yes

Suitable for traffic lights

No

Suitable for variable message signs

No

Suitable for rail transport

No

Suitable for traffic information board signaling

No

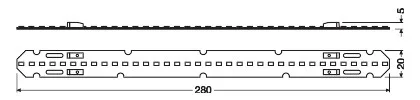

Length

280 mm

Width

20 mm

Height

5 mm

Protection class (IP)

IP20

Energy efficiency class

C

Average rated service life

50.000 h

Photobiological safety according to EN 62471

RG1

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Light-sensitive semiconductor components; light-emitting diodes (LED (85414100))

REACH Indicator

No

Datenblatt
4052899606081_tds_de.pdfasset-10579409-3.pdf
Energy efficiency class according to EU Directive 2019/2015

C
