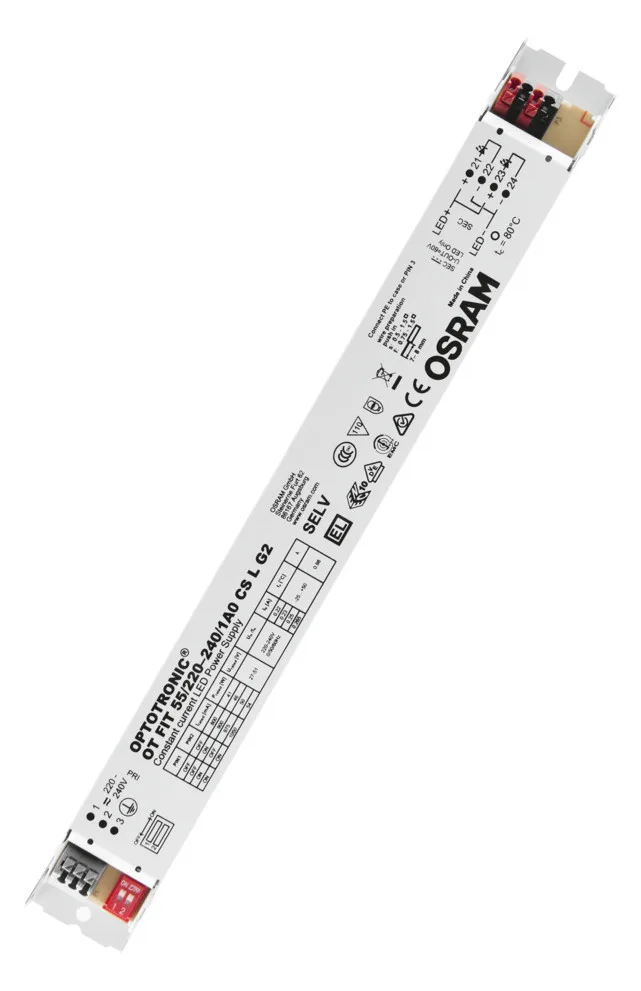

Linear / Area Constant Current – Not Dimmable

EU-Energielabel für dieses Produkt
SKU: 02-4052899522558
Datasheet: Download PDF
For more information, please refer to the data sheet!
Linear / Area Constant Current – Not dimmable. Product features: Mains frequency: 0 Hz | 50 Hz | 60 Hz. Versatile range of applications due to output powers of up to 75 W. Supply voltage: 220... 240 V. Available with output current range: up to 1,400 mA. SELV system. . Product advantages: Flexible current adjustment (DIPswitch - 4 streams). Service life: up to 100,000 h (at Tc= 65 °C, max. 10 % failure rate). High efficiency. High quality of light thanks to low output ripple current (current ripple). Overload, over-temperature, hot plug protection. . Areas of application: Linear lighting solutions for offices, educational institutions, industrial buildings, warehouse areas and retail. Installation in emergency lighting systems in accordance with IEC 61347-2-13, Annex J. Suitable for luminaires of protection class I.
Weight
0,217 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,217 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Execution

Static

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

I

Length

280 mm

Width

30 mm

Height

21 mm

RoHS applicable

Excluded

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
4052899522558_tds_de.pdfasset-1876762-2.pdfasset-3866073-2.pdfasset-5487775.pdfasset-3012944-2.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No
