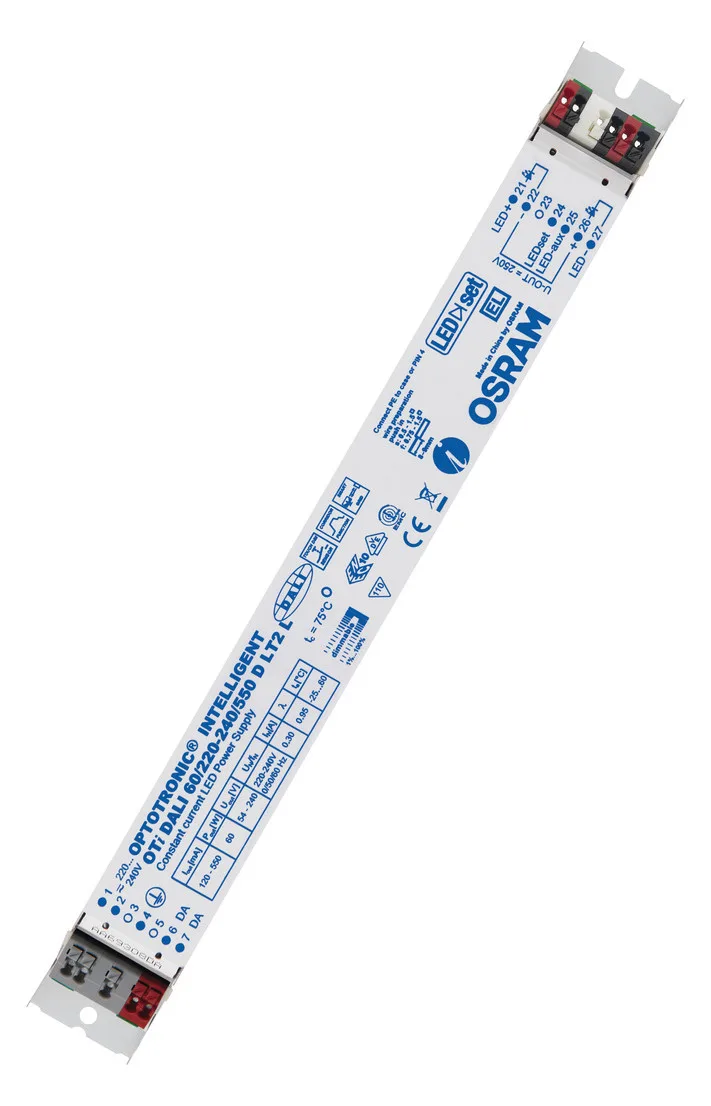

Compact constant current LED drivers
31. October 2024
Constant Current - Indoor
31. October 2024

Constant Current - Indoor

EU-Energielabel für dieses Produkt
SKU: 02-4052899494206
Datasheet: Download PDF
For more information, please refer to the data sheet!
Constant current - indoor use. Product features: Supply voltage: 220... 240 V. mains frequency: 0 Hz | 50 Hz | 60 Hz. Mains voltage: 198... 264 V. Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384. Radio interference suppression according to EN 55015:2007+A1:2007/CDN. Mains current harmonics according to EN 61000-3-2. Immunity, immunity to interference according to EN 61547. Service life: up to 100,000 h (at Tc= 65 °C, max. 10 % failure rate). SELV and non-isolated versions available. Product advantages: Versatile DALI wide-range driver up to 90 W due to flexible output characteristics. Very high efficiency and reliability. Protection of the system thanks to thermal management and Smart Control. Areas of application: Installation in emergency lighting systems according to IEC 61347-2-13, Annex J. Suitable for use in luminaires with flexible current adjustment (DALI, CLO, LEDset). Suitable for luminaires of protection class I.
Weight
0,205 kg
Minimum order quantity

20 pieces

Order step

20 pieces

Weight

0,205 kg

Product group

LED control gear (EC002710)

Constant luminous flux control

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

I

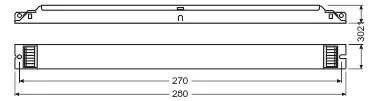

Length

280 mm

Width

30 mm

Height

21 mm

DALI dimming

Yes

Dimming manufacturer-specific

Yes

Programmable dimming

Yes

Dimming Touch and Dim

Yes

Dimming with push-button

Yes

RoHS applicable

Yes

Country of origin

Bulgaria (BG)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
4052899494206_tds_de.pdfasset-7803737.pdfasset-7803739.pdfasset-1865847-3.pdfasset-5487724.pdfasset-3908944-3.pdfasset-5487760.pdfasset-6765384-2.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Zigbee

No

Operation via Bluetooth

No
