LED Spot Modules with Integrated Optics

EU-Energielabel für dieses Produkt
SKU: 02-4052899474741
Datasheet: Download PDF
For more information, please refer to the data sheet!

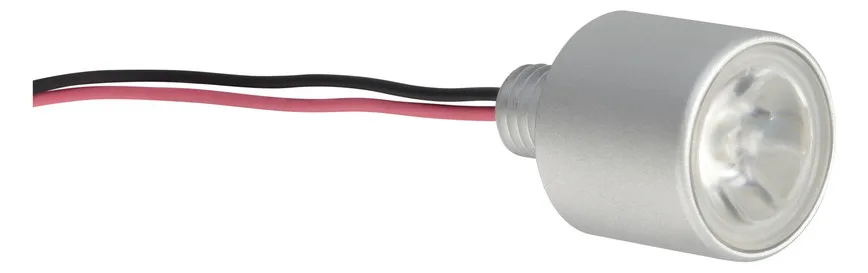

LED spot modules with integrated optics. Product features: Protection class IP65 according to DIN EN 60529. Only electrical series connection of the modules. Two-pole connection cable (500 mm). Dimmable by pulse width modulation (PWM). Product advantages: Metal housing for optimal heat dissipation. Easy installation thanks to integrated thread M10x1.5. No additional heatsink required. Narrow beam angle allows use as a spotlight source. Perfect centering due to heel on the case back (diameter 12 mm). Low maintenance thanks to a service life of up to 70,000 h. 5-year warranty. Areas of application: For accent, orientation or path lighting. Shelf and furniture lighting. Suitable for outdoor use.
Weight
0,024 kg
Minimum order quantity

264 pieces

Order step

264 pieces

Weight

0,024 kg

Product group

LED module (EC000996)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Lamp wattage

1 W

Voltage type

DC

Suitable for constant current

Yes

Suitable for constant voltage

No

External operating device required

Yes

Lamp voltage

2,9 V

Number of LEDs

1

Shape

other

Light color according to EN 12464-1

warm white <3300 K

Flexible

No

Color temperature

3.000 K

Luminous intensity

800 cd

Luminous flux

95 lm

Beam angle

15 °

Color consistency (McAdam ellipse)

SDCM4

Suitable for general lighting

Yes

Suitable for traffic lights

No

Suitable for variable message signs

No

Suitable for rail transport

No

Suitable for traffic information board signaling

No

Length

20 mm

Width

23 mm

Height

23 mm

Diameter

23 mm

Protection class (IP)

IP65

Energy efficiency class

F

Average rated service life

70.000 h

Photobiological safety according to EN 62471

RG0

RoHS applicable

Excluded

Country of origin

China (CN)

Commodity code

Light-emitting diode modules (LED modules) (85395100)

REACH Indicator

Yes

Datenblatt
4052899474741_tds_de.pdfasset-1868486.pdfasset-1868492.pdf
Energy efficiency class according to EU Directive 2019/2015

F
