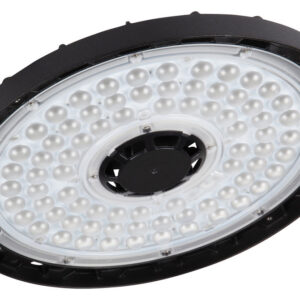

HIGH BAY GEN 3 93 W 6500 K 70DEG IP65

1,8 kg Weight

8 Max. Number of lights Circuit breaker C16

220 - 240 V Nominal voltage

430 mA Rated current

430 mA LED rated current with constant current

Ja Without dimming function

Fokuslinse Light distributor

35.000 h Rated service life L90/B10 at 25 °C

-30 - 55 °C Rated ambient temperature according to IEC 62722-2-1

93 W Max. System performance

140 lm/W Luminaire luminous efficacy

6.500 K Color temperature

143 mm Height/depth

1.500 mm Length

3 Number of poles

Ja RoHS applicable

Nein REACH Indicator

Nein DALI dimming

-30 - 55 °C Bemessungsumgebungstemperatur nach IEC62722-2-1

Hallenleuchten bis zu 150 lm/W und attraktiven UGR Werten

2,264 kg Weight

9 Max. Number of lights Circuit breaker C16

220 - 240 V Nominal voltage

400 mA Rated current

400 mA LED rated current with constant current

Ja Without dimming function

ohne Light distributor

35.000 h Rated service life L90/B10 at 25 °C

-30 - 50 °C Rated ambient temperature according to IEC 62722-2-1

87 W Max. System performance

150 lm/W Luminaire luminous efficacy

4.000 K Color temperature

155 mm Height/depth

280 mm Length

3 Number of poles

Ja RoHS applicable

Ja REACH Indicator

Nein DALI dimming

-30 - 50 °C Bemessungsumgebungstemperatur nach IEC62722-2-1

Hallenleuchten bis zu 150 lm/W und attraktiven UGR Werten

2,264 kg Weight

9 Max. Number of lights Circuit breaker C16

220 - 240 V Nominal voltage

400 mA Rated current

400 mA LED rated current with constant current

Ja Without dimming function

ohne Light distributor

35.000 h Rated service life L90/B10 at 25 °C

-30 - 50 °C Rated ambient temperature according to IEC 62722-2-1

87 W Max. System performance

150 lm/W Luminaire luminous efficacy

6.500 K Color temperature

155 mm Height/depth

280 mm Length

3 Number of poles

Ja RoHS applicable

Ja REACH Indicator

Nein DALI dimming

-30 - 50 °C Bemessungsumgebungstemperatur nach IEC62722-2-1

LED-Hallenleuchten mit DALI-Schnittstelle

2,818 kg Weight

8 Max. Number of lights Circuit breaker C16

100 - 277 V Nominal voltage

420 mA Rated current

420 mA LED rated current with constant current

Nein Without dimming function

ohne Light distributor

30.000 h Rated service life L90/B10 at 25 °C

-30 - 50 °C Rated ambient temperature according to IEC 62722-2-1

93 W Max. System performance

140 lm/W Luminaire luminous efficacy

4.000 K Color temperature

160 mm Height/depth

280 mm Length

5 Number of poles

Ausgenommen RoHS applicable

Ja REACH Indicator

Ja DALI dimming

-30 - 50 °C Bemessungsumgebungstemperatur nach IEC62722-2-1
